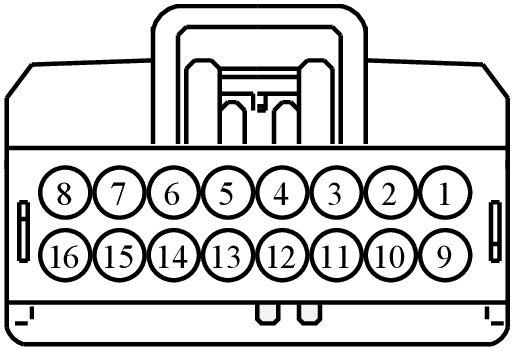

Connector End View (C341A) - DRIVER SEAT MODULE (DSM)
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C341A | DRIVER SEAT MODULE (DSM) | none | 14D230/14D231 | #NA | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CHS09 (GY) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER INDICATOR LOW | N/A | ||||
| 2 | VHS18 (BN-GN) | 20 | CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION BLOWER SPEED CONTROL | N/A | ||||
| 3 | VHS21 (BU-WH) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK BLOWER SPEED CONTROL | N/A | ||||
| 4 | VHS23 (BN-BU) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION BLOWER SPEED CONTROL | N/A | ||||
| 5 | RHS03 (GY-OG) | 18 | CTRL MOD. - HOT/COLD SEAT # DRIVER FAN - | N/A | ||||
| 5 | RHS03 (GY-OG) | 20 | CTRL MOD. - HOT/COLD SEAT # DRIVER FAN - | RHD | N/A | |||
| 6 | CHS08 (BN-YE) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN + | N/A | ||||
| 7 | CHS03 (GN-BN) | 18 | CTRL MOD. - HOT/COLD SEAT # DRIVER FAN + | N/A | ||||
| 7 | CHS03 (GN-BN) | 20 | CTRL MOD. - HOT/COLD SEAT # DRIVER FAN + | RHD | N/A | |||
| 8 | CHS06 (BN) | 18 | CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER + | RHD | N/A | |||
| 8 | CHS06 (GY-VT) | 18 | CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER + | N/A | ||||
| 9 | RHS05 (YE-VT) | 20 | CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP. | N/A | ||||
| 10 | RHS10 (BU-OG) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP. | N/A | ||||
| 11 | CHS14 (GN) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER INDICATOR HIGH | N/A | ||||
| 12 | VHS26 (VT) | 20 | SENSOR - CUSHION TEMP. DRIVER OR LEFT | N/A | ||||
| 13 | VHS36 (YE-BU) | 20 | SENSOR - BACK TEMP. PASSENGER | N/A | ||||
| 14 | VHS27 (WH-OG) | 20 | SENSOR - CUSHION TEMP. PASSENGER OR RIGHT | N/A | ||||
| 15 | RHS08 (VT-WH) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN - | N/A | ||||
| 16 | CHS06 (GY-VT) | 18 | CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER + | N/A | ||||
| 16 | CHS06 (BN) | 18 | CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER + | RHD | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1585
Service Part Number:
KU2Z-14S411-FB
Gauge:
20
Pin material:
Silver
Cavities:
16
Vehicle Uses:
- Module - Audio Control
- Module - Seat Multi Contour
Pigtail Kit Part Number WPT-1579
Service Part Number:
KU2Z-14S411-FA
Gauge:
20
Pin material:
Silver
Cavities:
16
Vehicle Uses:
- Module - Audio Control
- Module - Seat Multi Contour
