Parking Brake Cable Adjustment
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Special Tool(s) / General Equipment
| Feeler Gauge |
|---|
Adjustment
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview
.
- Tighten the parking brake cable adjustment nut until one or both caliper levers are 2.0 mm off of their stops. Use the General Equipment: Feeler Gauge

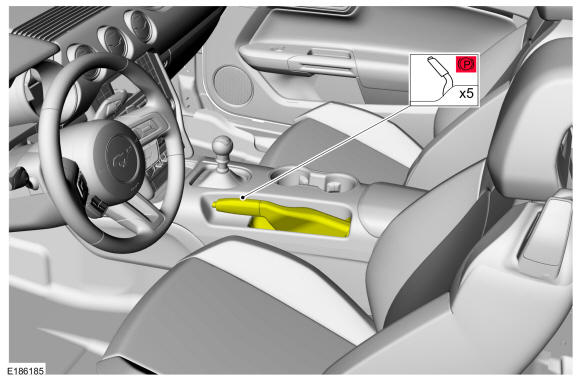

- Fully apply and release the parking brake 5 times

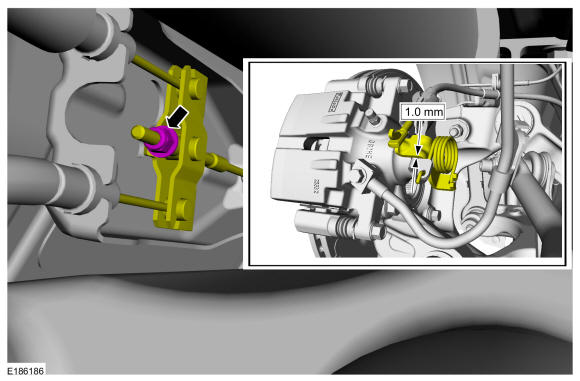

- Tighten the parking brake cable adjustment nut until one or both caliper levers are 1.0 mm off of their stops. Use the General Equipment: Feeler Gauge
