Brake Vacuum Pump - 2.3L EcoBoost (231kW/314PS): Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the cowl vent panel Refer to: Cowl Panel Grille .

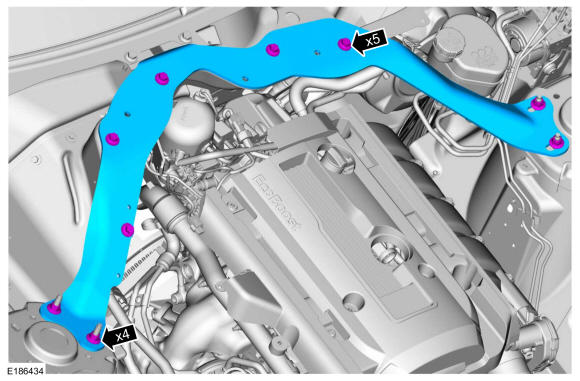

- Remove the 5 bolts, 4 nuts and the cowl extension.
Torque: Bolts: 26 lb.ft (35 Nm) Nuts: 41 lb.ft (55 Nm)

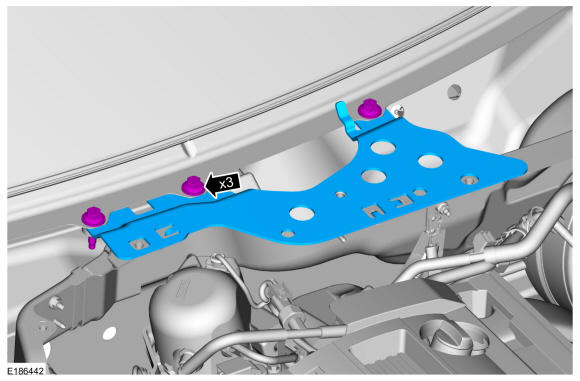

- Remove the 3 bolts and bracket.
Torque: 26 lb.ft (35 Nm)
- Remove the 4 nuts and the engine appearance cover.
Torque: 80 lb.in (9 Nm)
- Detach the fuel line bracket from the intake manifold.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

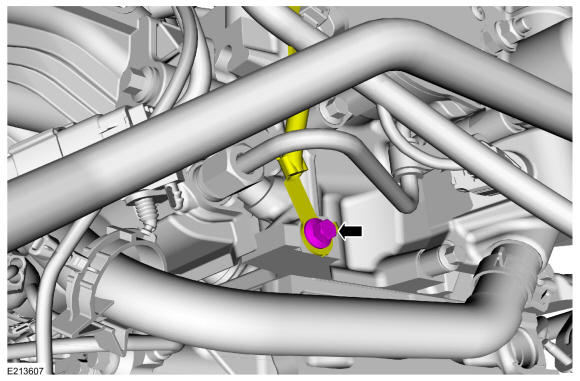

- Remove the bolt and detach the ground wire from the cylinder head.
Torque: 18 lb.ft (25 Nm)
-

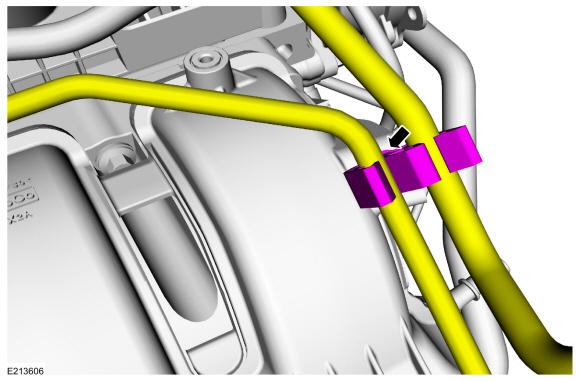

- Detach the wiring harness retainer.

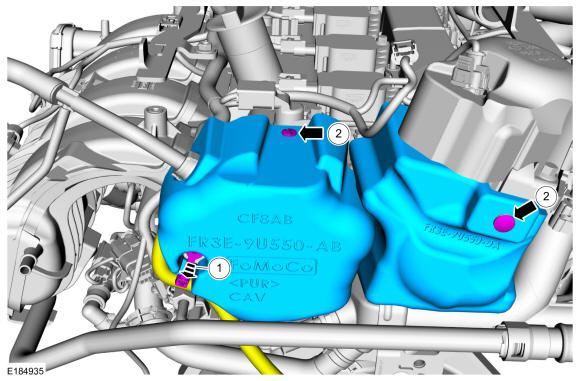

- Remove the 2 retainers, the brake vacuum pump cover and the high pressure fuel pump cover.

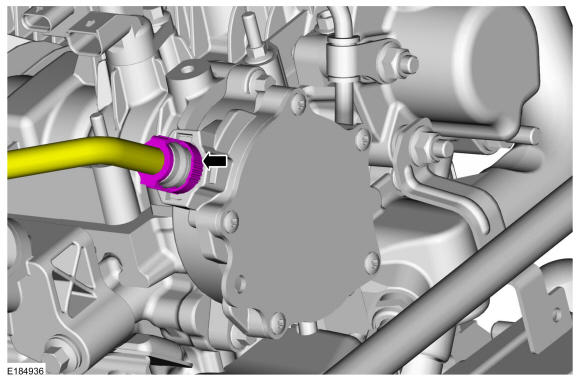

- Release the coupling and disconnect the vacuum tube.

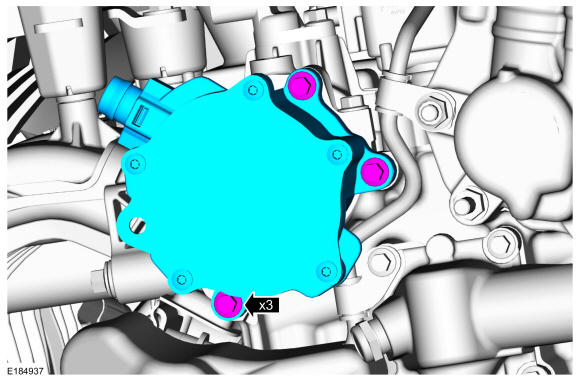

- Remove the bolts and vacuum pump.
Torque: 89 lb.in (10 Nm)
-
NOTE: Make sure that the mating faces are clean and free of foreign material.

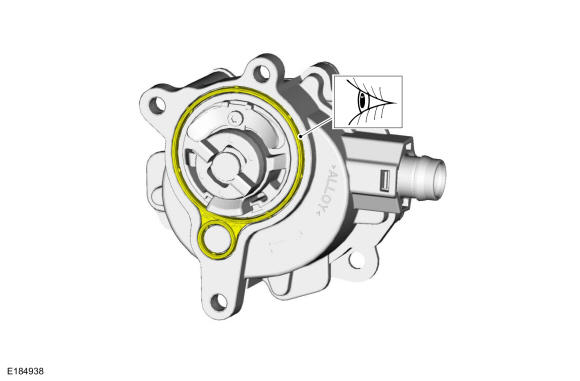

Inspect the brake vacuum pump housing gasket and replace as necessary.
