Brake Master Cylinder: Removal

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

Vehicles with manual transmission

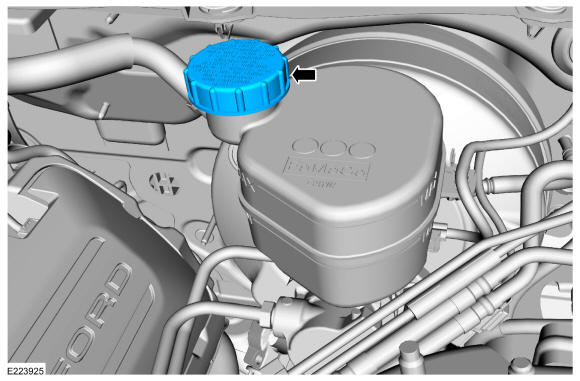

Remove the brake fluid reservoir cap.

Courtesy of FORD MOTOR COMPANY

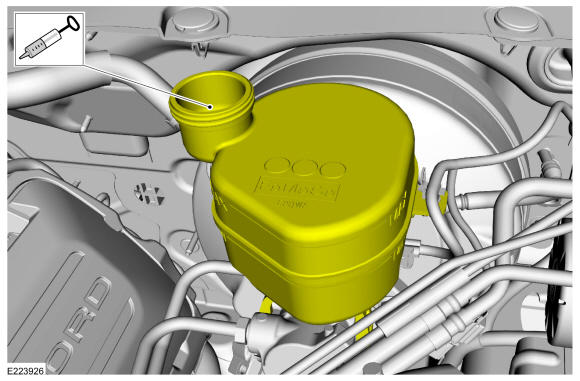

Using a suitable suction device, syphon the brake fluid from the brake fluid reservoir.

Courtesy of FORD MOTOR COMPANY

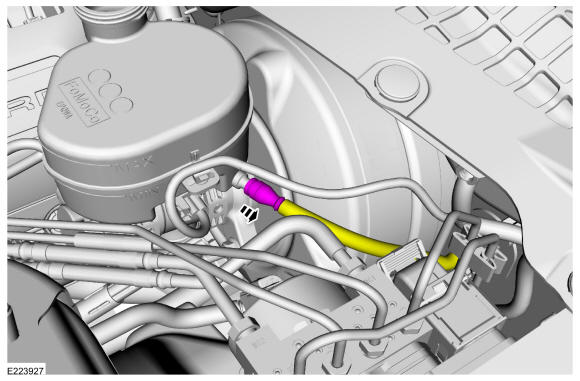

Disconnect the clutch master cylinder tube.

Courtesy of FORD MOTOR COMPANY

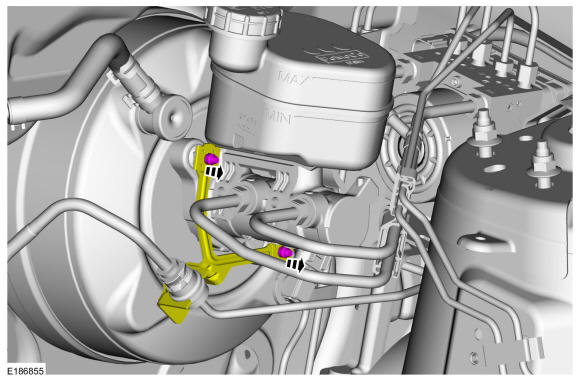

Detach the clutch master cylinder tube bracket from the master cylinder studs.

Courtesy of FORD MOTOR COMPANY

All vehicles

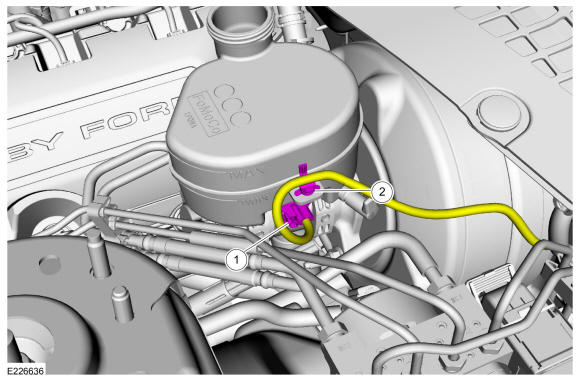

1. Disconnect the brake fluid level sensor electrical connector.
2. Detach the wiring harness retainer from the brake fluid reservoir.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

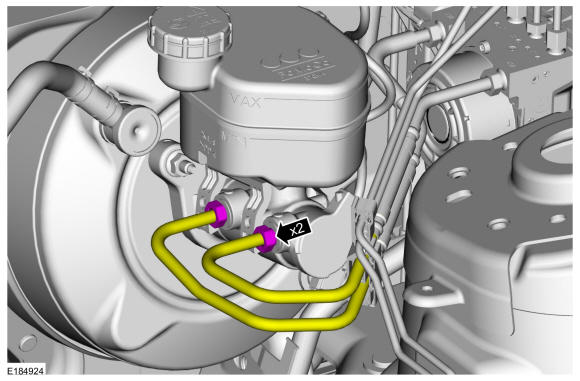

Disconnect the 2 brake tube fittings.

Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

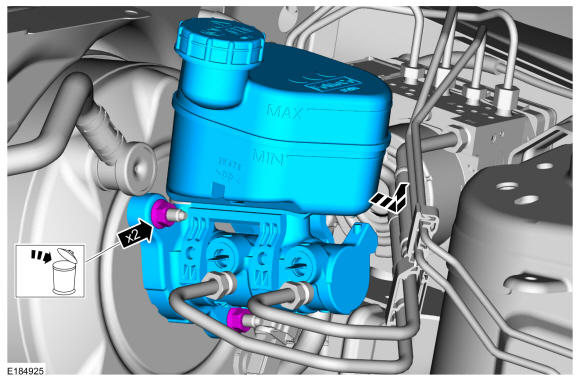

Remove the 2 nuts and the brake master cylinder. Discard the nuts.
Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY
