Parking, Rear And License Lamps

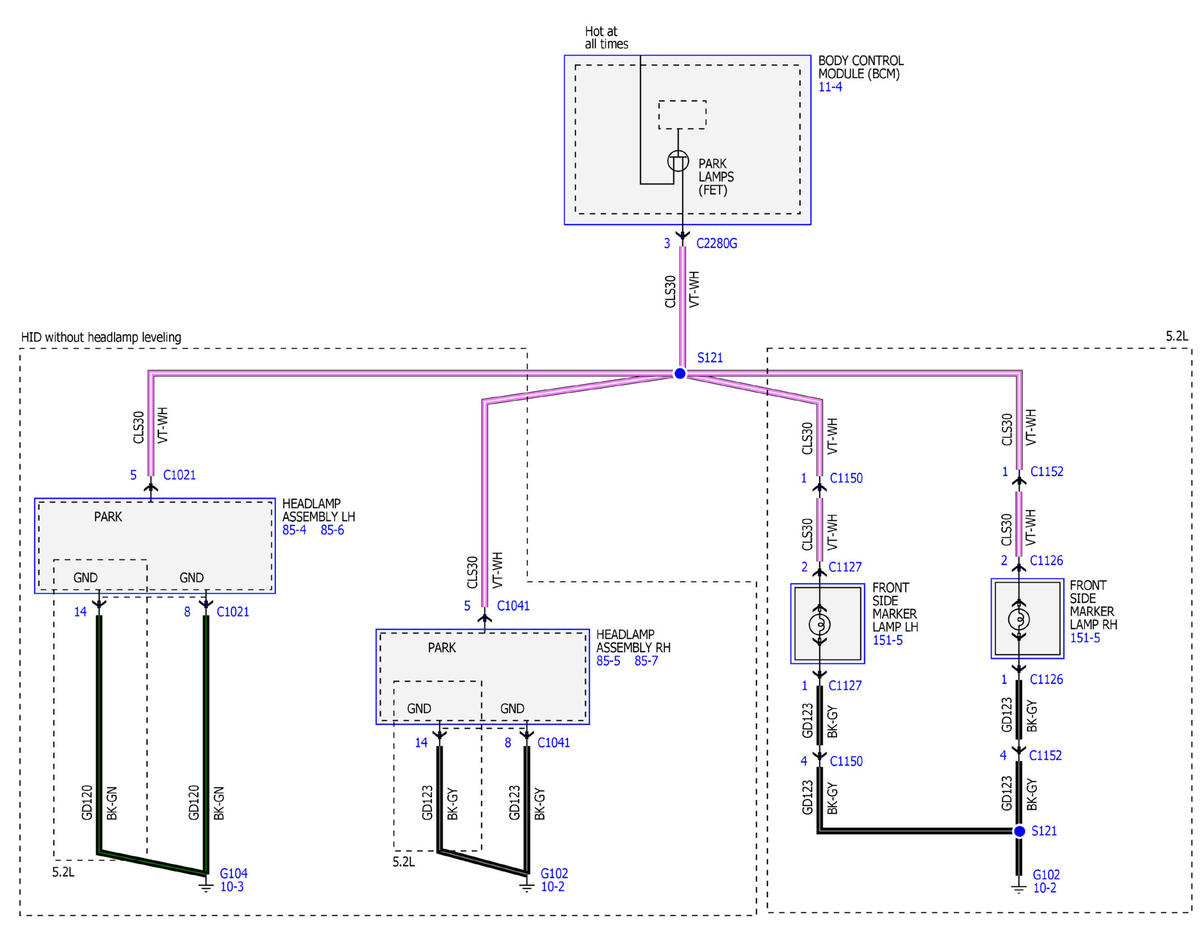

Fig 1: Parking, Rear and License Lamps Wiring Diagram (1 of 8)
GFDWR10978Courtesy of FORD MOTOR COMPANY

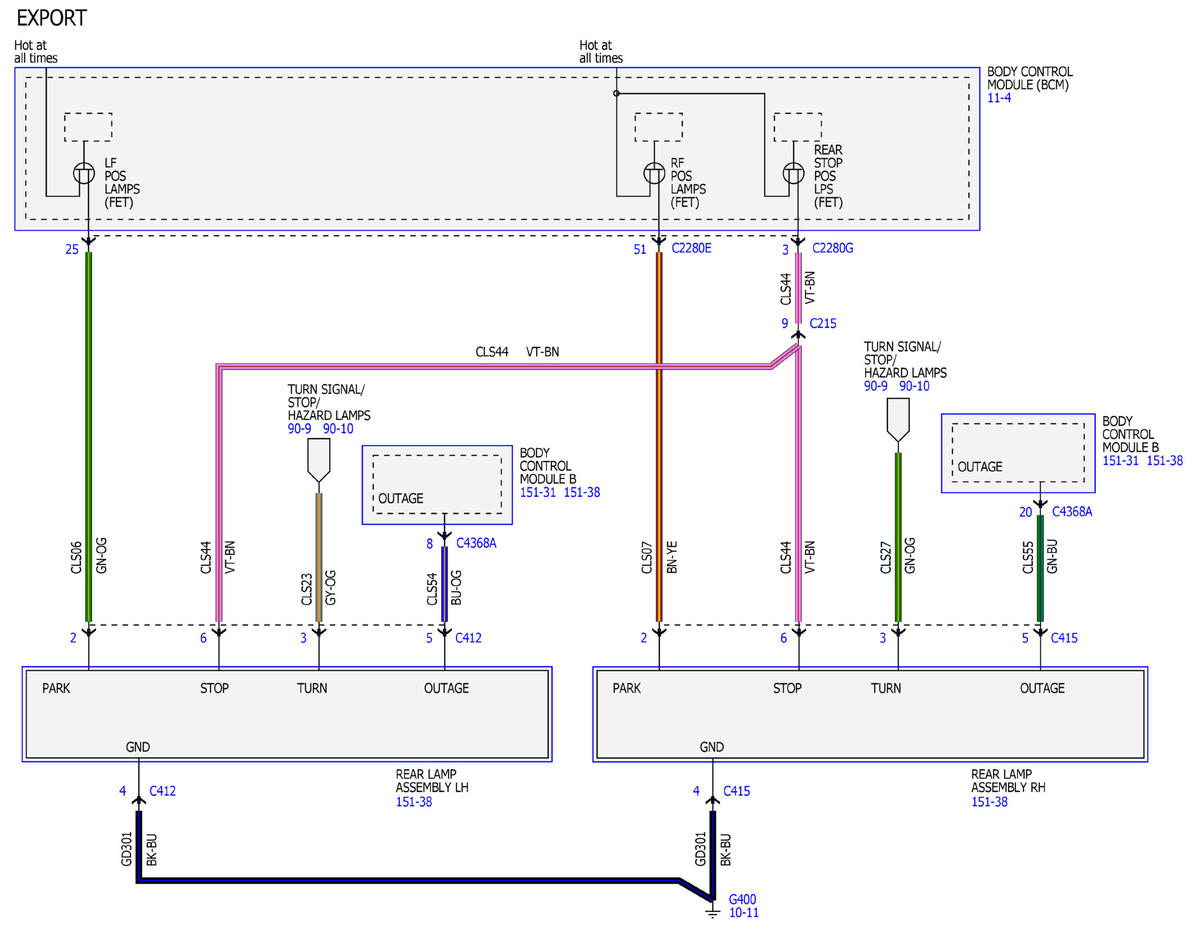

Fig 2: Parking, Rear and License Lamps Wiring Diagram (2 of 8)
GFDWR10979Courtesy of FORD MOTOR COMPANY

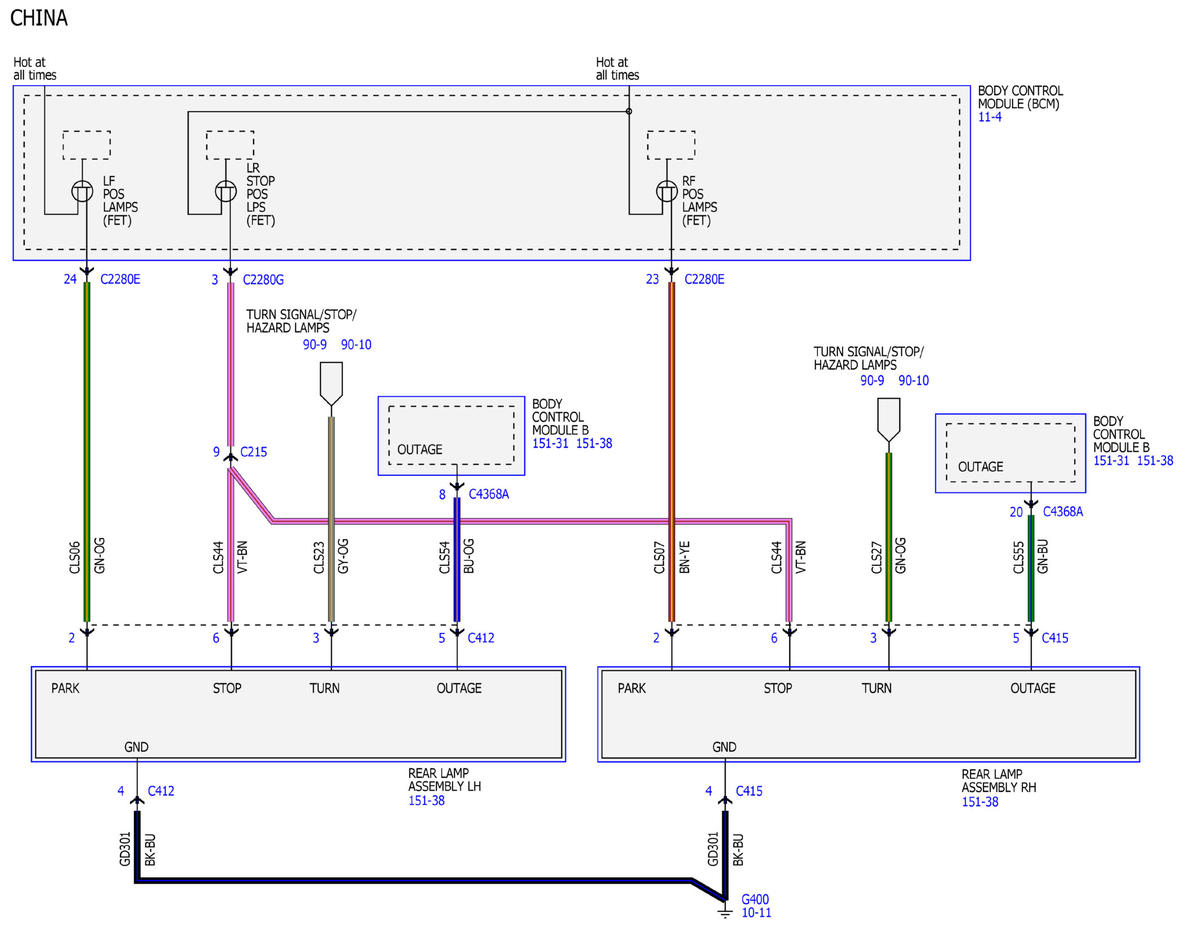

Fig 3: Parking, Rear and License Lamps Wiring Diagram (3 of 8)
GFDWR10980Courtesy of FORD MOTOR COMPANY

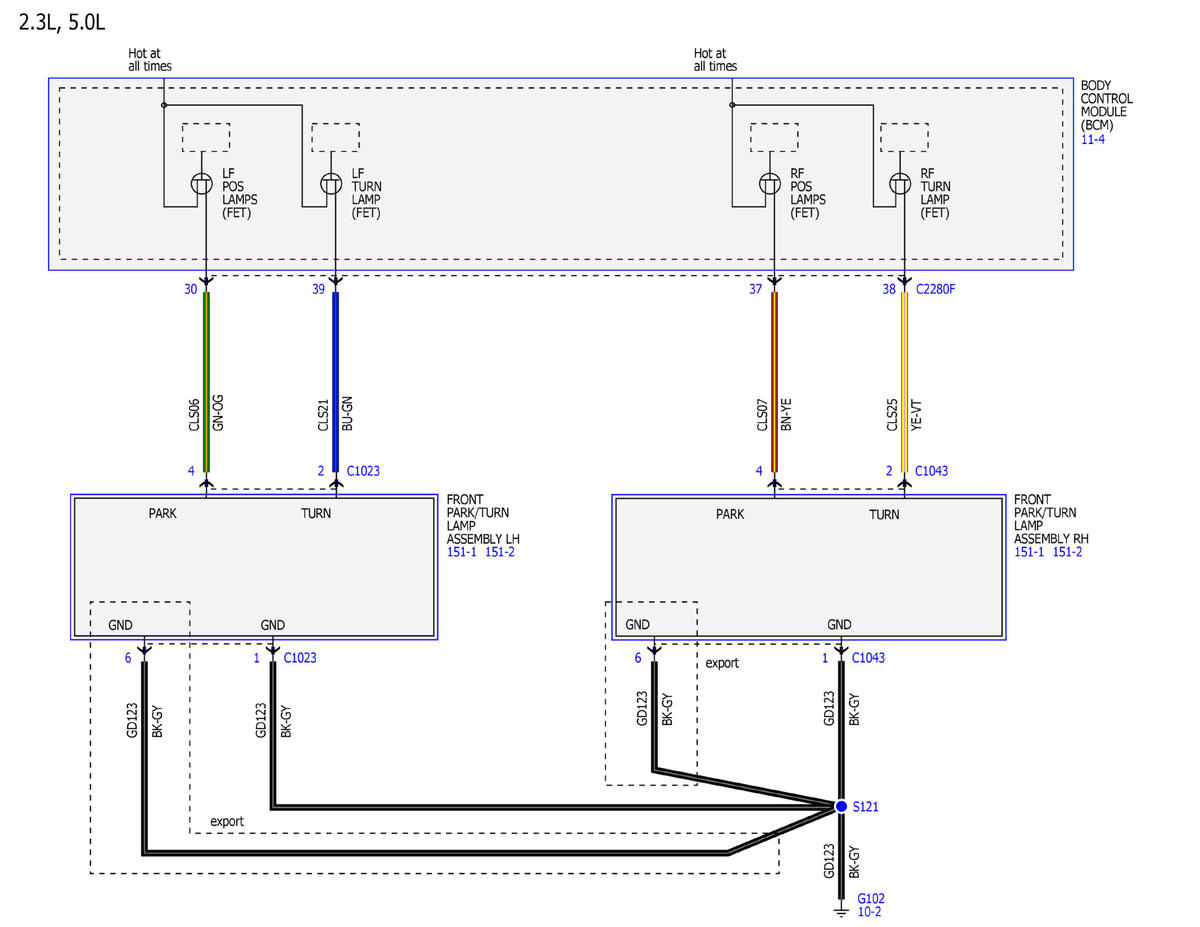

Fig 4: Parking, Rear and License Lamps Wiring Diagram (4 of 8)
GFDWR10981Courtesy of FORD MOTOR COMPANY

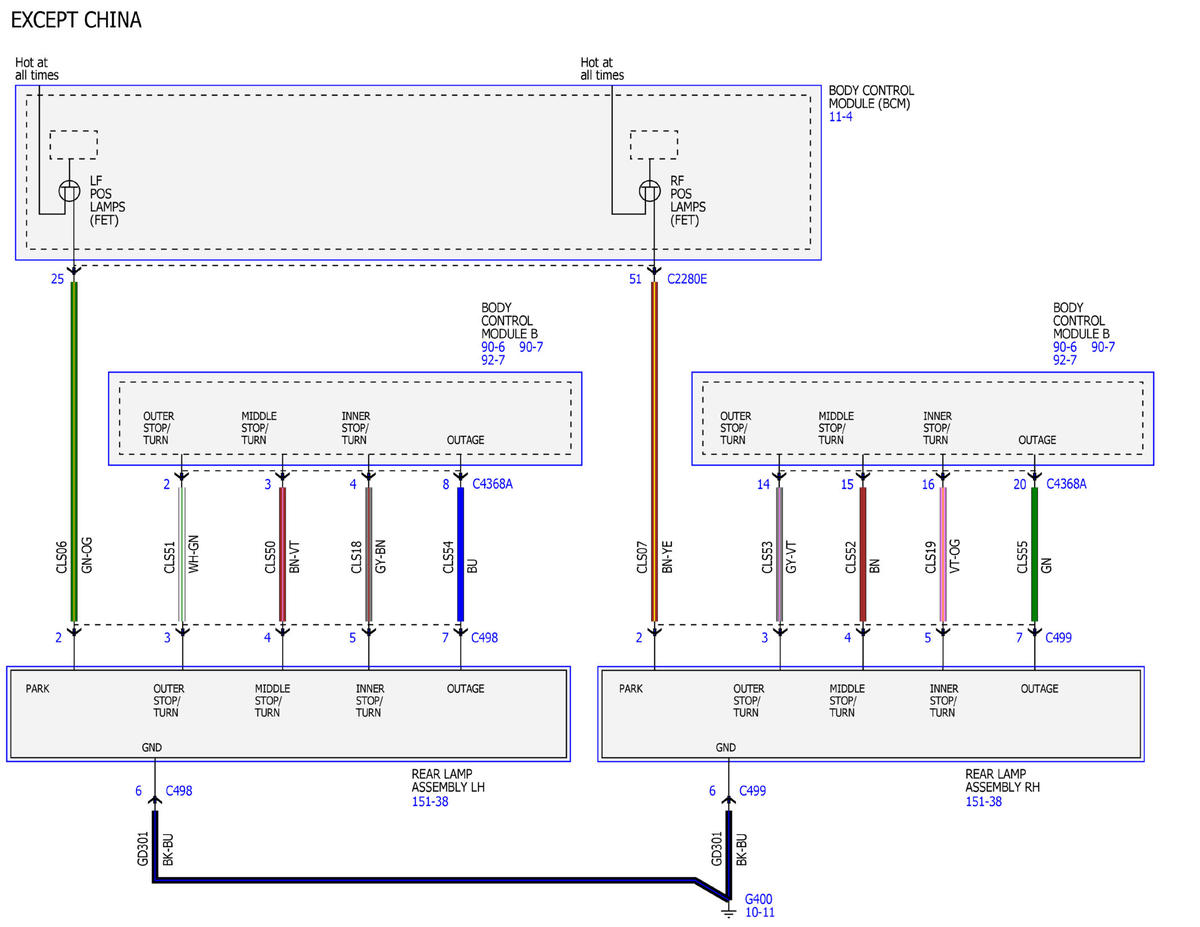

Fig 5: Parking, Rear and License Lamps Wiring Diagram (5 of 8)
GFDWR10982Courtesy of FORD MOTOR COMPANY

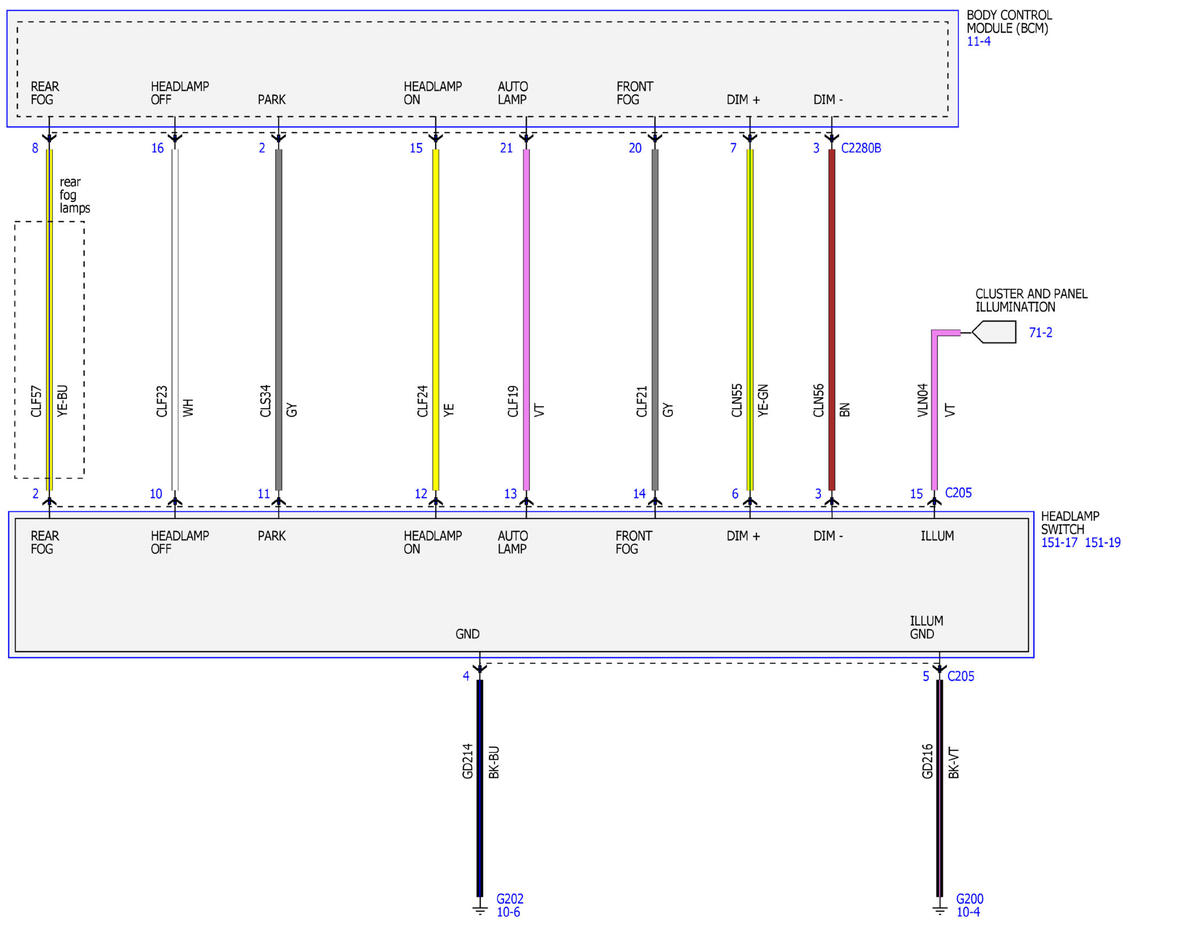

Fig 6: Parking, Rear and License Lamps Wiring Diagram (6 of 8)
GFDWR10983Courtesy of FORD MOTOR COMPANY

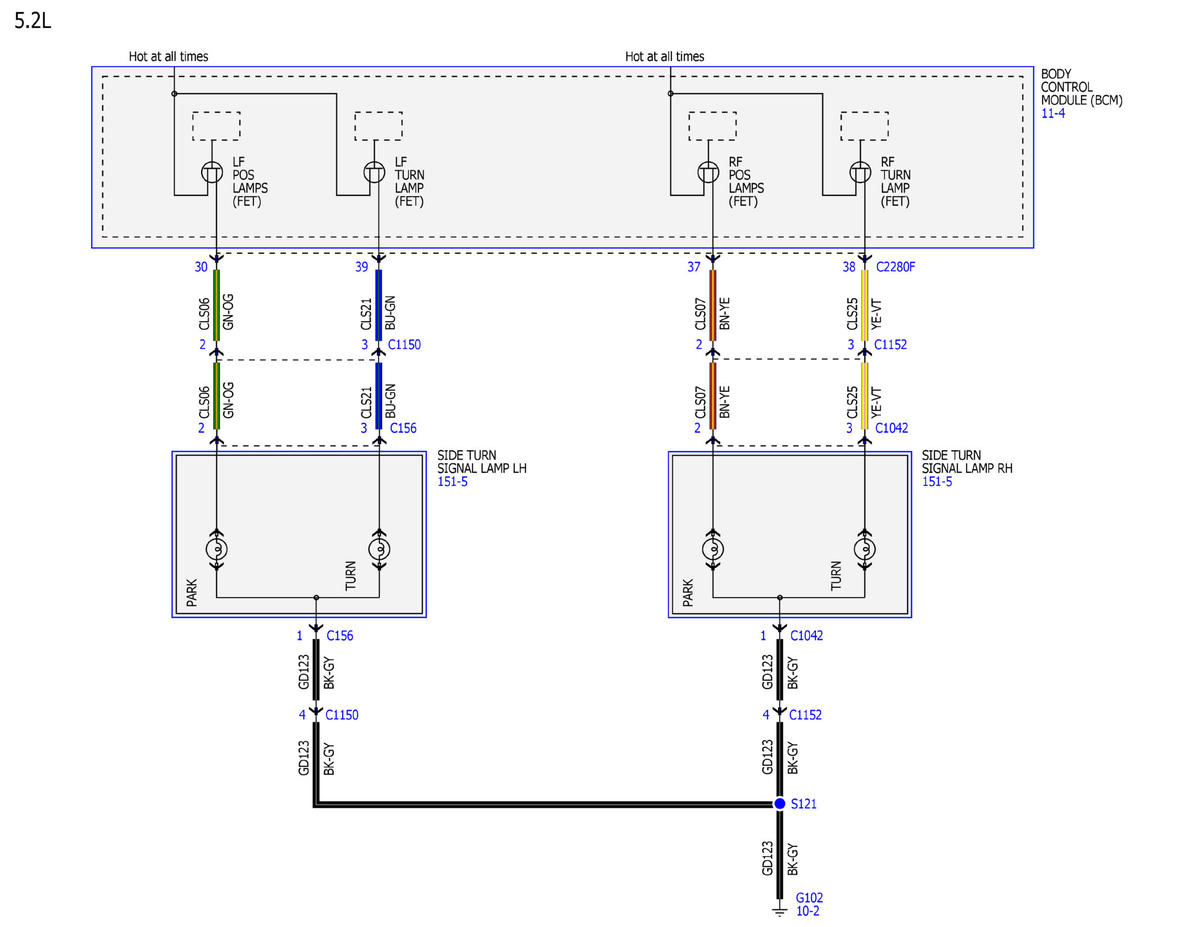

Fig 7: Parking, Rear and License Lamps Wiring Diagram (7 of 8)
GFDWR10984Courtesy of FORD MOTOR COMPANY

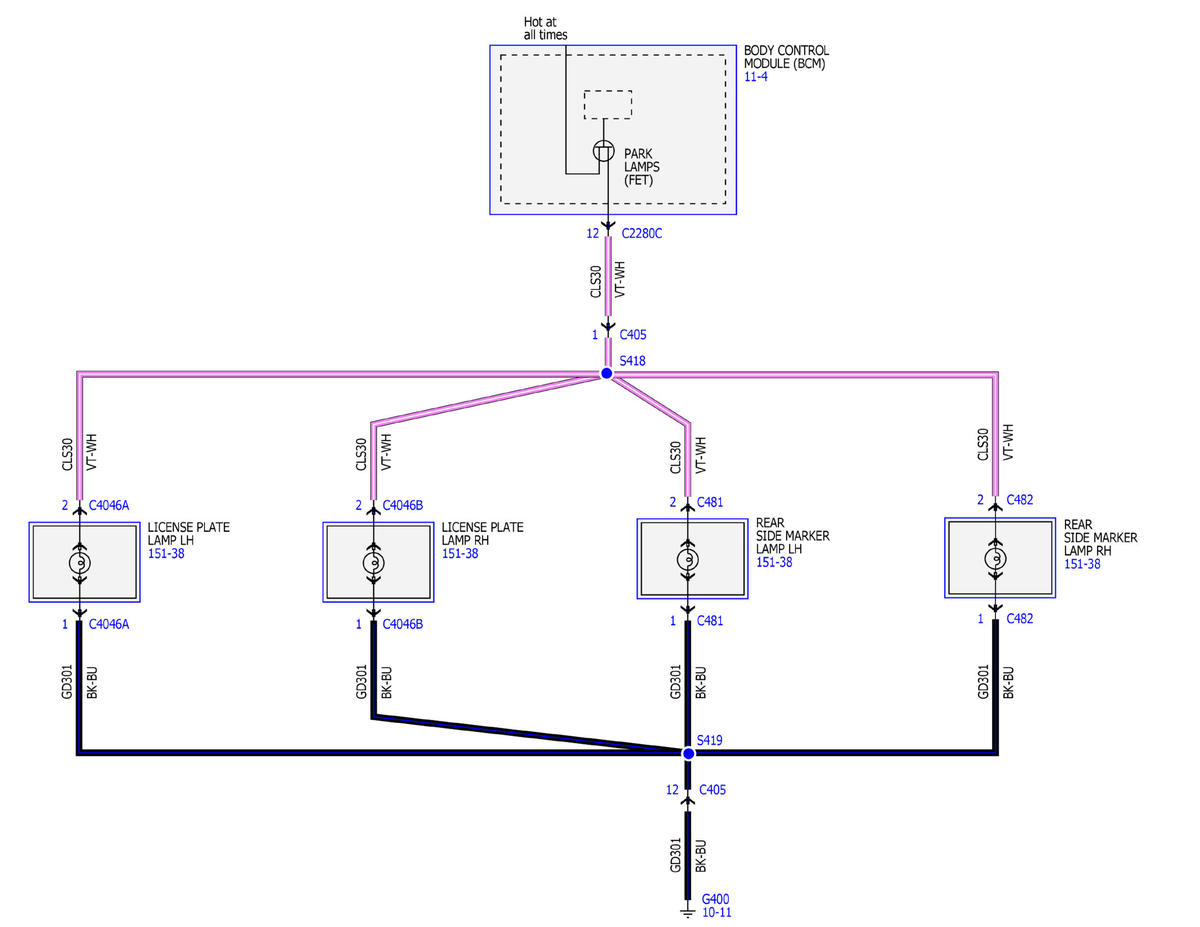

Fig 8: Parking, Rear and License Lamps Wiring Diagram (8 of 8)
GFDWR10985Courtesy of FORD MOTOR COMPANY
