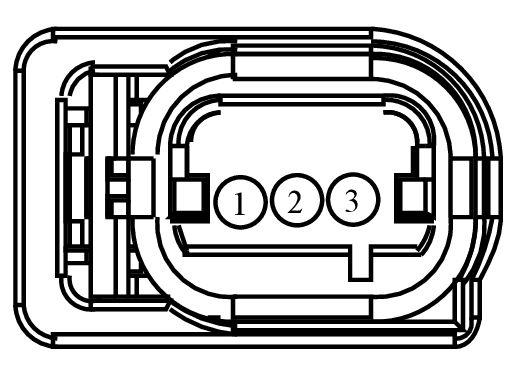

Connector End View (C1366) - CAMSHAFT POSITION BANK 1 SENSOR 1 (CMP11)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1366	CAMSHAFT POSITION BANK 1 SENSOR 1 (CMP11)	12C508			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LE111 (VT-GN)	18	CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR)	2L1T-14474-LA
2	VE736 (WH-GN)	18	SENSOR - CAMSHAFT POSITION BANK 1 EX	2L1T-14474-LA
3	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2	2L1T-14474-LA

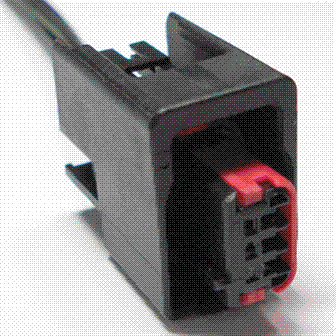

Available Pigtail Kits

Pigtail Kit Part Number WPT-1039

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-AGA

Gauge:

18

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Sensor - Adjustable Pedal
• Sensor - Cam Shaft Position
• Sensor - Crank Shaft Position
