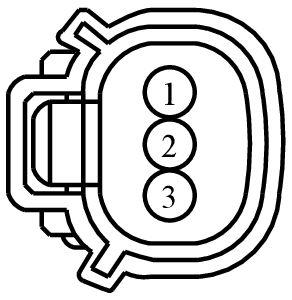

Connector End View (C1286) - INTAKE MANIFOLD RUNNER CONTROL BANK 1 (IMRC1) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1286	INTAKE MANIFOLD RUNNER CONTROL BANK 1 (IMRC1) SENSOR	12C508			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
7C3T-14474-FA	DU2Z-14474-DA	1.5
7C3T-14474-GA	DU2Z-14474-DA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE742 (BU-WH)	20	SENSOR - INTAKE PORT DEACT VALVE POSITION	7C3T-14474-FA
2	LE423 (VT-GN)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)	7C3T-14474-FA
3	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2	7C3T-14474-GA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1261

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-MA

Gauge:

16

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Coil - Ignition
