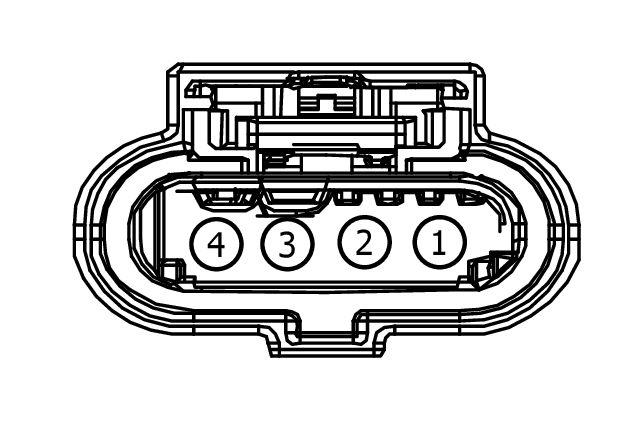

Connector End View (C1257) - FUEL RAIL PRESSURE TEMPERATURE (FRPT) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1257	FUEL RAIL PRESSURE TEMPERATURE (FRPT) SENSOR	none	12C508	14A464	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LE238 (GY)	18	CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR +	N/A
2	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2	N/A
3	VE761 (BN-BU)	18	SENSOR - FUEL LOW PRESSURE (FLPS)	N/A
4	VE728 (GN)	18	SENSOR - FUEL RAIL TEMPERATURE (FRT)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1508

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-CA

Gauge:

18

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Sensor - Differential Pressure
• Sensor - Fuel Rail Pressure
