Connector End View (C9801) - PASSENGER AIRBAG DEACTIVATION (PAD) INDICATOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C9801	PASSENGER AIRBAG DEACTIVATION (PAD) INDICATOR	14334			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
3F2T-14474-SA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR116 (GN-WH)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATE +	N/A
2	RR116 (GN-WH)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATE -	3F2T-14474-SA
3	CR195 (YE-BU)	18	CTRL MOD. - EXTENDED POWER # OCCUPANT CLASSIFICATION MODULE POWER	3F2T-14474-SA

Available Pigtail Kits

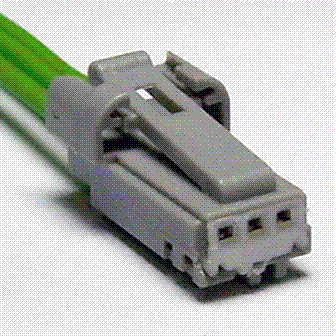

Pigtail Kit Part Number WPT-1182

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-AFA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Microphone
