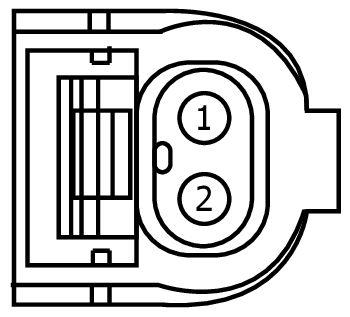

Connector End View (C3822) - KNOCK SENSOR 22 (KS22)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3822	KNOCK SENSOR 22 (KS22)	none	14B485	14A464	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE829 (GN-BU)	18	SENSOR - KNOCK 2ND BANK 2ND	N/A
2	RE345 (VT-GY)	18	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 2ND	N/A

Available Pigtail Kits

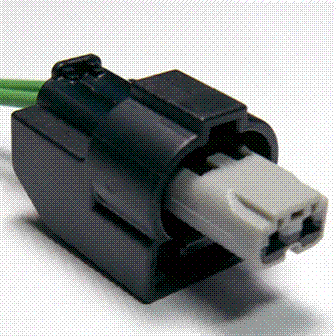

Pigtail Kit Part Number WPT-1520

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-TA

Gauge:

20

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Sensor - Knock
• Solenoid - Engine Variable Timing
• Solenoid - Turbo Charger Bypass
• Valve - Variable A/C Compressor
