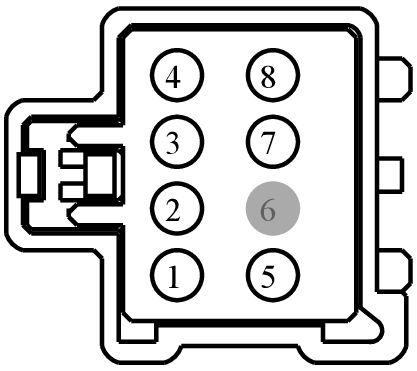

Connector End View (C3695) - FRONT SEAT CUSHION BLOWER MOTOR RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3695	FRONT SEAT CUSHION BLOWER MOTOR RH	none	14D230	#NA	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CHS02 (YE-BU)	16	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER +	N/A
2	RHS02 (BU-OG)	16	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER -	N/A
3	CHS03 (GN-BN)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER FAN +	N/A
4	RHS03 (GY-OG)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER FAN -	N/A
5	VHS26 (VT)	26	SENSOR - CUSHION TEMP. DRIVER OR LEFT	N/A
6	- ()	*	Not Used	N/A
7	VHS18 (BN-GN)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION BLOWER SPEED CONTROL	N/A
8	RHS05 (YE-VT)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP.	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1034

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-ZTB

Gauge:

14

Pin material:

Tin

Cavities:

8

Vehicle Uses:

• Lamp - Park/Turn/Stop
• Lamp - Park/Turn/Stop/Reverse - Inline (Male)
