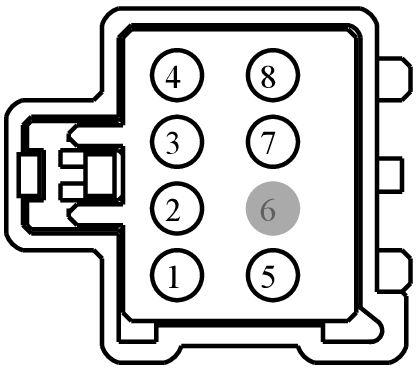

Connector End View (C3694) - FRONT SEAT CUSHION BLOWER MOTOR LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3694	FRONT SEAT CUSHION BLOWER MOTOR LH	none	14D231	#NA	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CHS07 (GY-BU)	14	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER +	N/A
2	RHS07 (BU)	14	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER -	N/A
3	CHS08 (BN-YE)	18	CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN +	N/A
4	RHS08 (VT-WH)	18	CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN -	N/A
5	VHS27 (WH-OG)	20	SENSOR - CUSHION TEMP. PASSENGER OR RIGHT	N/A
6	*	*	Not Used	N/A
7	VHS23 (BN-BU)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION BLOWER SPEED CONTROL	N/A
8	RHS10 (BU-OG)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP.	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1034

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-ZTB

Gauge:

14

Pin material:

Tin

Cavities:

8

Vehicle Uses:

• Lamp - Park/Turn/Stop
• Lamp - Park/Turn/Stop/Reverse - Inline (Male)
