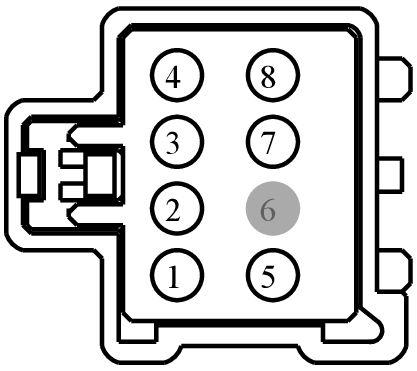

Connector End View (C3040) - FRONT SEAT CUSHION BLOWER MOTOR RH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3040 | FRONT SEAT CUSHION BLOWER MOTOR RH | LT GY | 14D230 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 2L1T-14421-DA | EU2Z-14421-CA | 1.5 |
| 2L1T-14421-CA | EU2Z-14421-CA | 1.5 |
| 2L1T-14421-BA | EU2Z-14421-CA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CHS07 (GY-BU) | 4 | CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER + | 2L1T-14421-DA | ||||
| 2 | RHS07 (BU) | 4 | CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER - | 2L1T-14421-DA | ||||
| 3 | CHS08 (BN-YE) | 18 | CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN + | 2L1T-14421-CA | ||||
| 4 | RHS08 (VT-WH) | 18 | CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN - | 2L1T-14421-CA | ||||
| 5 | VHS27 (WH-OG) | 20 | SENSOR - CUSHION TEMP. PASSENGER | 2L1T-14421-BA | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | VHS23 (BN-BU) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION BLOWER SPEED CONTROL | 2L1T-14421-BA | ||||
| 8 | RHS10 (BU-OG) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP. | 2L1T-14421-BA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1034
Service Part Number:
3U2Z-14S411-ZTB
Gauge:
14
Pin material:
Tin
Cavities:
8
Vehicle Uses:
- Lamp - Park/Turn/Stop
- Lamp - Park/Turn/Stop/Reverse - Inline (Male)
