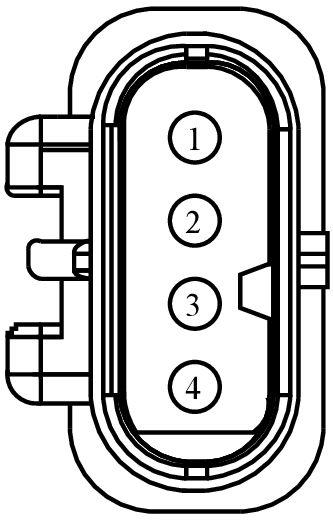

Connector End View (C1917) - HEATED OXYGEN SENSOR (HO2S) #12
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1917 | HEATED OXYGEN SENSOR (HO2S) #12 | 12C508/14B060 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14421-NA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE233 (WH-OG) | 18 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) | EU5T-14421-NA | ||||
| 2 | CBK02 (GN) | 18 | FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) | EU5T-14421-NA | ||||
| 3 | RE454 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 | Automatic transmission | EU5T-14421-NA | |||
| 3 | RE731 (BK) | 18 | SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (LSF_GND) | Manual transmission | EU5T-14421-NA | |||
| 4 | VE731 (YE-GN) | 18 | SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) | EU5T-14421-NA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1381
Service Part Number:
EU2Z-14S411-EA
Gauge:
18
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Sensor - Catalyst Monitor
