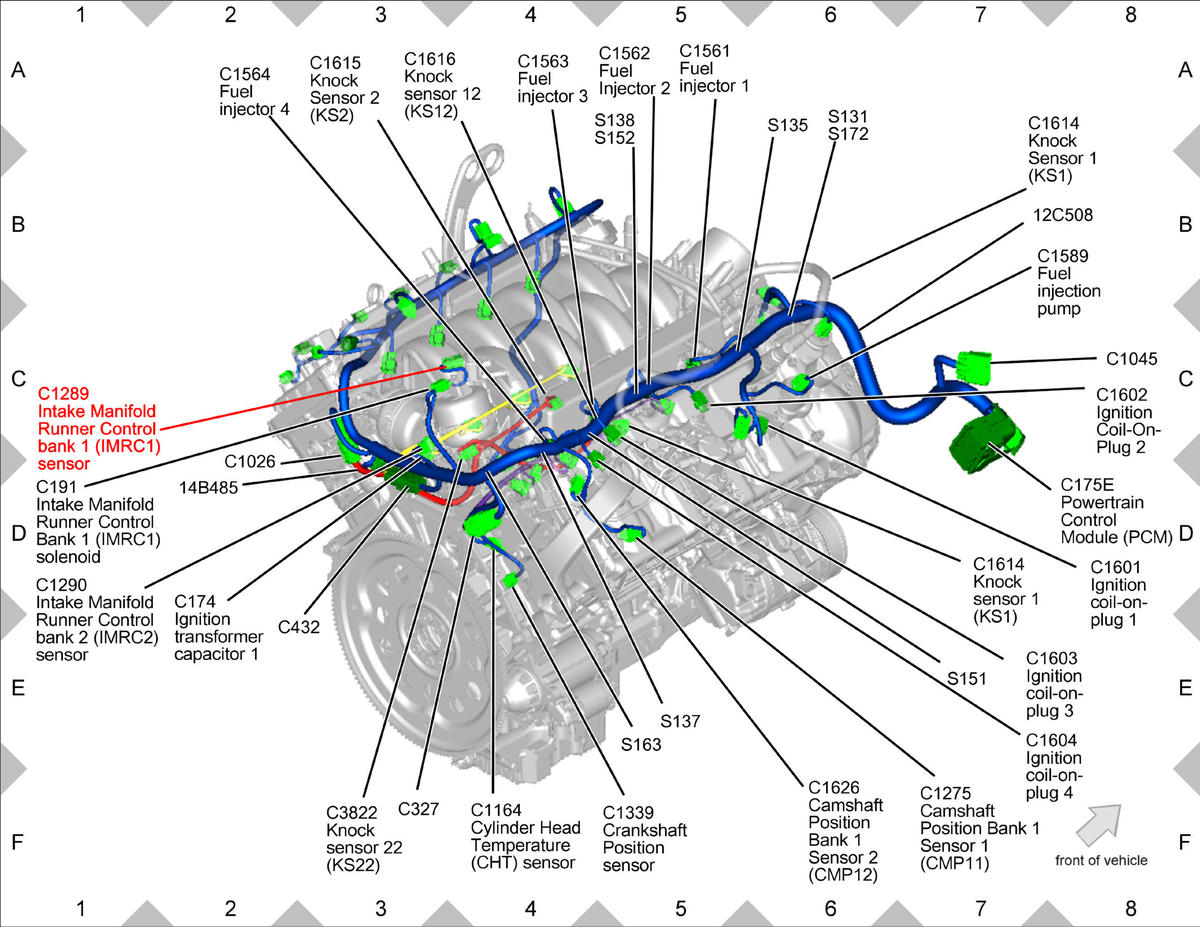

Intake Manifold Runner Control bank 1 (IMRC1) Sensor (5.0L)
Intake Manifold Runner Control bank 1 (IMRC1) Sensor (5.0L)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
