Instrument Panel Cluster (IPC): Removal

All vehicles

NOTE: LH shown, RH similar.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the IPC following the on-screen instructions. Record the odometer value from the original IPC. If the odometer value cannot be obtained from the IPC (display failure), perform the diagnostic routine. If the value cannot be obtained after the diagnostic routine, the customer should supply the approximate odometer value.
Remove the instrument panel center finish panel. Refer to: Instrument Panel Center Finish Panel .

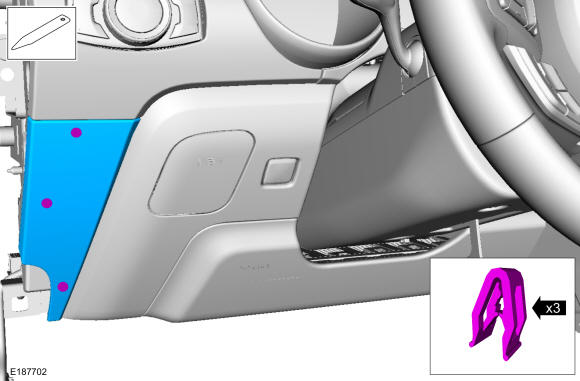

Release the clips and remove LH instrument panel trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

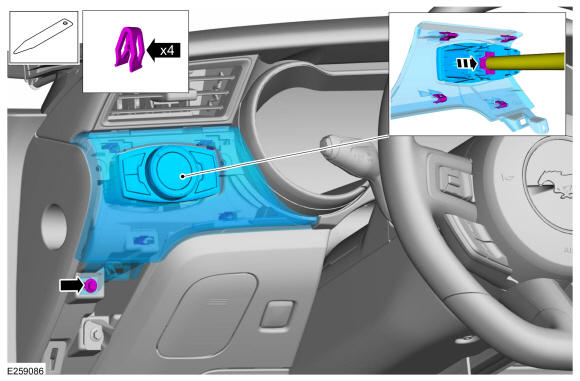

Remove the bolts, release the clips and remove the lighting switch panel.
- Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

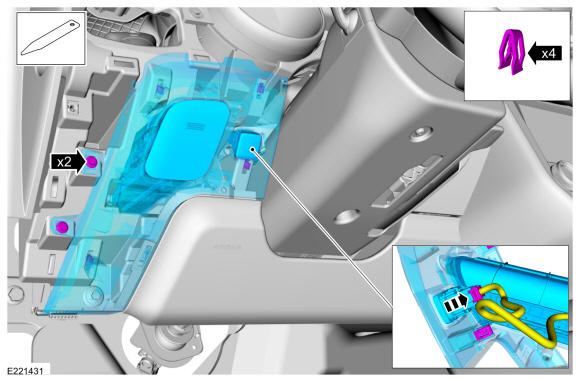

Remove the bolt, release the clips and remove the LH finish panel.
- Disconnect the electrical connector.
  Torque: 27 lb.in (3 Nm)
Courtesy of FORD MOTOR COMPANY

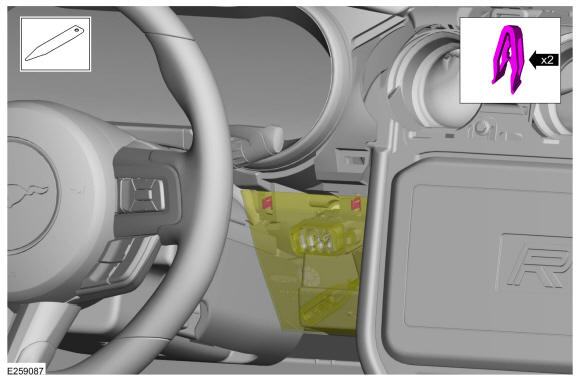

Release the clips and position aside the lower instrument panel cover. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

Vehicles with Digital IPC

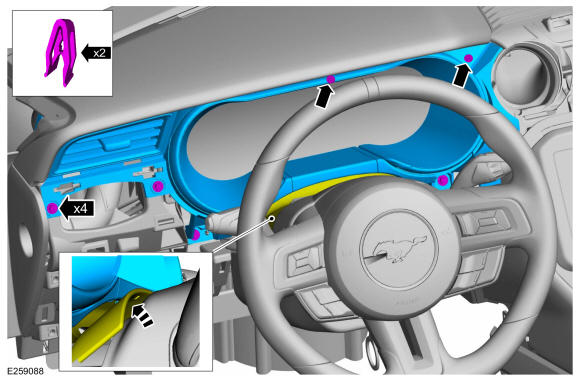

Remove the bolts, release the clips and remove the IPC trim panel.
- Detach the gap hider from the upper steering column trim cover.
  Torque: 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

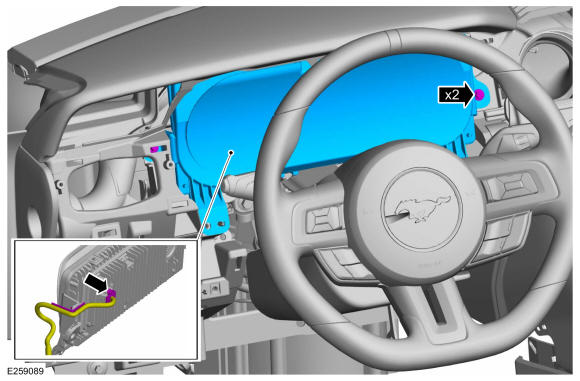

Remove the bolts and remove the IPC.
- Disconnect the electrical connector.
  Torque: 16 lb.ft (22 Nm)
Courtesy of FORD MOTOR COMPANY

Vehicles with Analog IPC
Remove the bolts, release the clips and remove the IPC trim panel.
- Detach the gap hider from the upper steering column trim cover.
  Torque: 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the bolts, release the clips and remove the IPC.
- Disconnect the electrical connector.
  Torque: 16 lb.ft (22 Nm)

Courtesy of FORD MOTOR COMPANY
