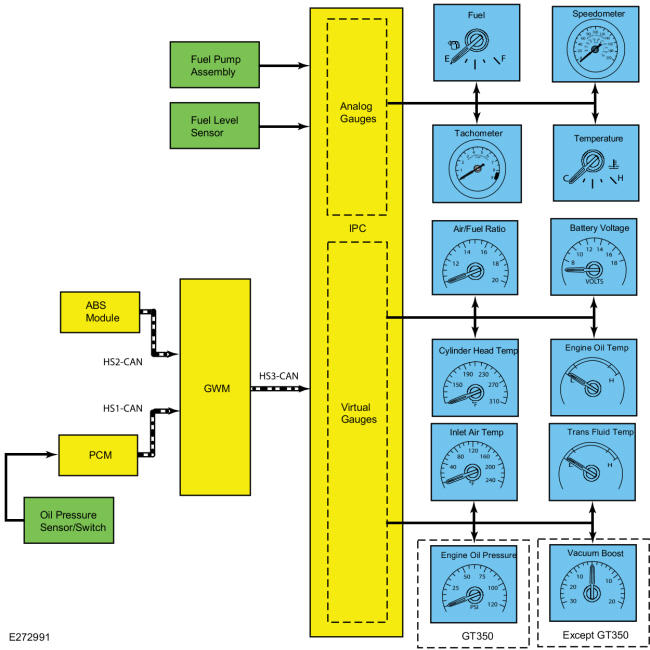

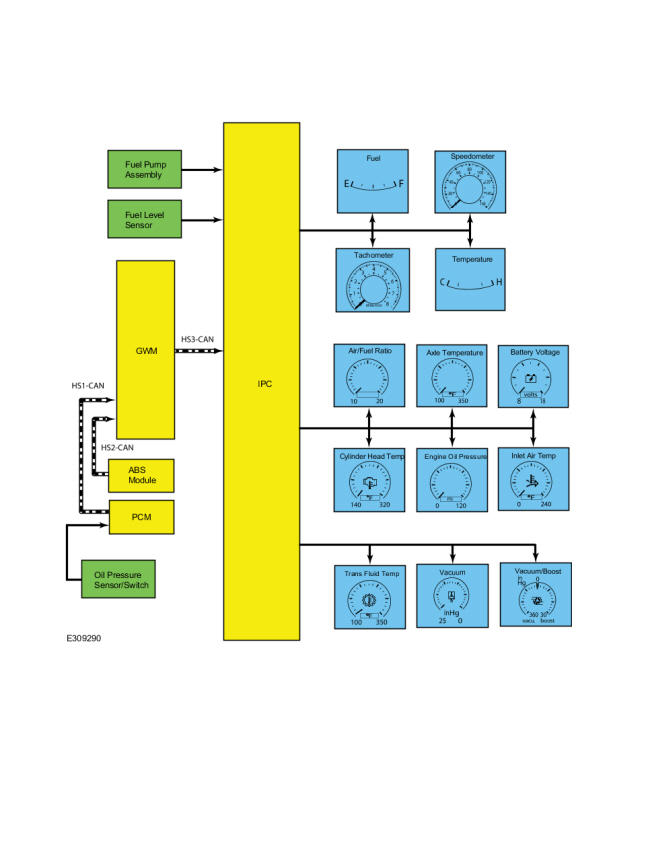

Home >> Ford >> 2018 >> Mustang GT, Automatic Trans >> Repair and Diagnosis (Single Page) >> Electrical >> Gauges >> Information Center - Instrumentation, Message Center And Warning Chimes (1 Of 2) >> Description And Operation >> Instrument Panel Cluster (IPC) - System Operation and Component Description >> System Operation >> System Diagram - Gauges
