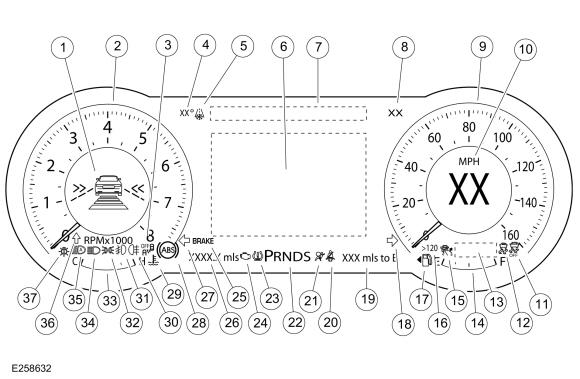

Digital IPC

The digital IPC utilizes a color Thin Film Transistor (TFT) display for all cluster information. This is a complete virtual IPC without any analog gauges or LED-type indicators. All indicators and gauges appear similar to standard analog gauges and LED indicators found in other analog Instrument Panel Clusters (IPCs).

In some instances a display replaces the current display. In other instances, newly selected displays (such as the message center and settings menus, TPMS or trip computer displays) overlay a currently displayed item, replacing the current display. Due to the nature of the virtual cluster, the cluster displays and the level of detail may change based on driver selections. For additional information related to the IPC displays, setup and message center menu selections, refer to the Owner Literature.

The digital IPC provides the following display modes:

• Normal
• MyMode
• Sport
• Track
• Drag

Depending on option level, the IPC provides the following virtual gauge displays:

• Air fuel ratio
• Axle temperature
• Battery voltage (LHD 5.0L and 2.3L performance only)
• Cylinder head temperature
• Engine oil pressure (LHD 5.0L and 2.3L performance only)
• Inlet air temperature
• Transmission fluid temperature
• Vacuum gauge
• Vacuum/boost gauge

Courtesy of FORD MOTOR COMPANY

Digital IPC
