Analog IPC
The analog IPC utilizes the following analog gauges:
- Speedometer
- Tachometer
- Fuel
- Engine temperature
The analog IPC also provides a single display screen that contains the message center, RTT indication and virtual gauge displays.
Informational indicators inform the driver of conditions that exist in the vehicle. Warning indicators provide information to the driver of conditions that could potentially cause personal injury or alter vehicle performance.
RTT indicators illuminate in the message center and replace the typical informational or warning indicator, using the same iconic representation. The message center uses a rotating RTT display area that can display multiple indicators, if needed, while using fixed locations for other indicators and displays.
Depending on option level, the IPC provides the following virtual gauge displays:
- Air fuel ratio
- Axle temperature
- Battery voltage
- Cylinder head temperature
- Engine oil temperature
- Inlet air temperature
- Transmission fluid temperature
- Vacuum gauge
- Vacuum/boost gauge
Analog IPC

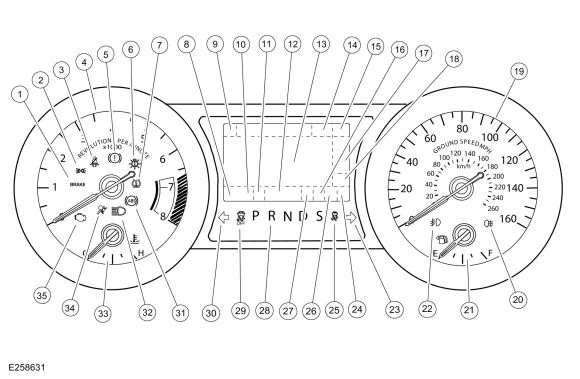

| Item | Description |
|---|---|
| 1 | Brake warning indicator (United States) |
| 2 | Lights on indicator |
| 3 | Seatbelt warning indicator |
| 4 | Tachometer |
| 5 | Brake warning indicator (except United States) |
| 6 | LED low beam malfunction indicator |
| 7 | TPMS indicator |
| 8 | Odometer display |
| 9 | Menu navigation indicator |
| 10 | Upshift RTT (if equipped) |
| 11 | SelectShift® display |
| 12 | Rotating RTT display area BLIS off Charging system Door ajar Engine over-temperature Hood ajar Low fuel Low oil pressure Low washer fluid Luggage compartment lid ajar Overspeed RTT warning indicator (Gulf Coast Countries [GCC] only) Powertrain malfunction (wrench) |
| 13 | Main message center display area |
| 14 | Overspeed warning RTT |
| 15 | Compass |
| 16 | Drive mode RTT display Drag strip Normal (Sport if in "S" shifter position) Snow-wet Sport plus Track |
| 17 | ACC display (if equipped) Forward collision/pre-collision assist display Lane keeping system display (if equipped) |
| 18 | Digital speed display |
| 19 | Speedometer |
| 20 | Rear fog lamp indicator (if equipped) |
| 21 | Fuel gauge |
| 22 | Front fog lamp indicator |
| 23 | RH turn indicator |
| 24 | Cruise control RTT |
| 25 | Stability-traction control indicator (sliding car icon) |
| 26 | Auto high beam RTT indicator |
| 27 | Launch control RTT display (if equipped) |
| 28 | PRNDL display |
| 29 | Stability-traction control disabled indicator (sliding car OFF icon) |
| 30 | LH turn indicator |
| 31 | ABS indicator |
| 32 | High beam indicator |
| 33 | Temperature gauge |
| 334 | Airbag warning indicator |
| 35 | MIL-- |
