Rear Halfshaft Seal: Removal

  1. Remove the rear halfshafts. Refer to: Rear Halfshaft .

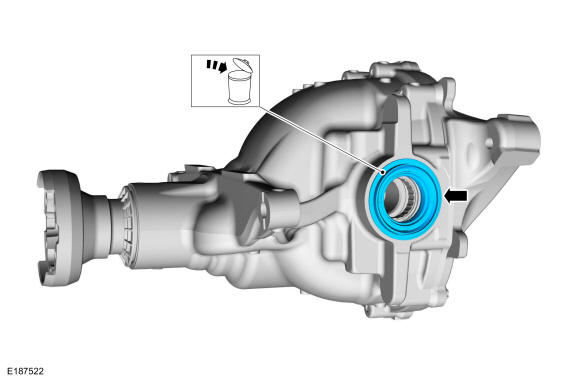

  2. Remove and discard the rear half halfshaft seal.
    GFD284724Courtesy of FORD MOTOR COMPANY

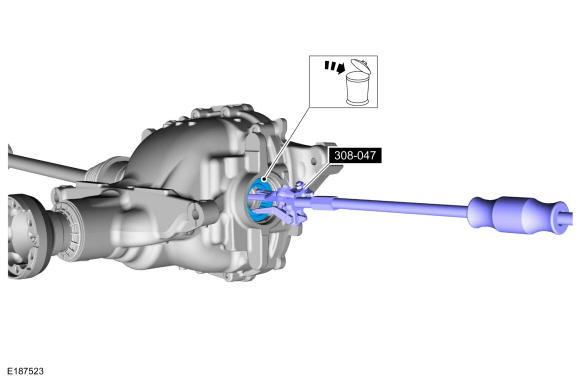

  3. Remove and discard the rear halfshaft pilot bearing. Use Special Service Tool: 308-047 (T77F-1102-A) Remover, Bearing Cup. Use the General Equipment: Slide Hammer
GFD284725Courtesy of FORD MOTOR COMPANY
