Parking Brake Shoes - Vehicles With: SVT Performance Package: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the brake disc. Refer to: Brake Disc .

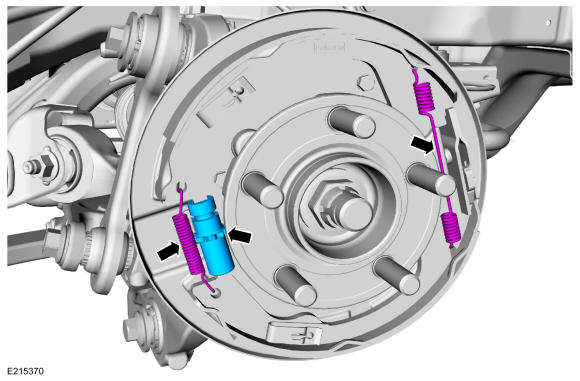

- Remove the return springs and the adjuster.

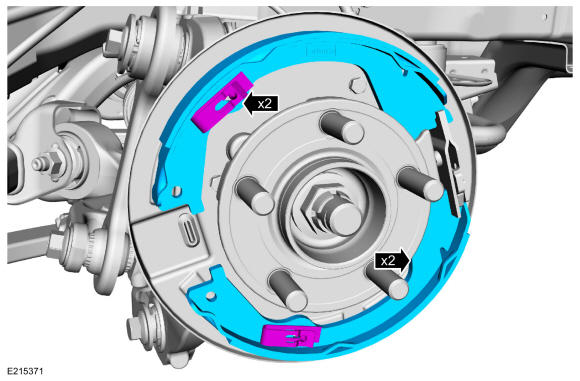

- Remove the hold down springs, pins and the parking brake shoes.
