Parking Brake Shoes - Vehicles With: SVT Performance Package: Installation

  1. Using specified grease, lubricate the parking brake shoe contact points.

    Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

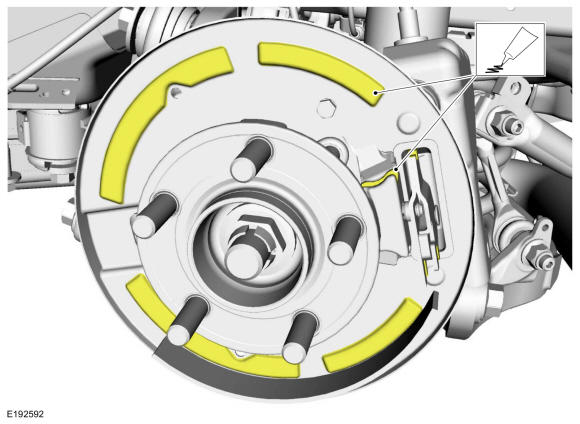

    GFD284894Courtesy of FORD MOTOR COMPANY
  2. Adjust the parking brake shoes. Refer to: Parking Brake Shoe Adjustment - Vehicles With: SVT Performance Package .
