Rear Brake Pads: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove wheel and tire. Refer to: Wheel and Tire .
-
NOTE: Do not allow the brake caliper to hang from the brake hose or damage to the brake hose may occur.

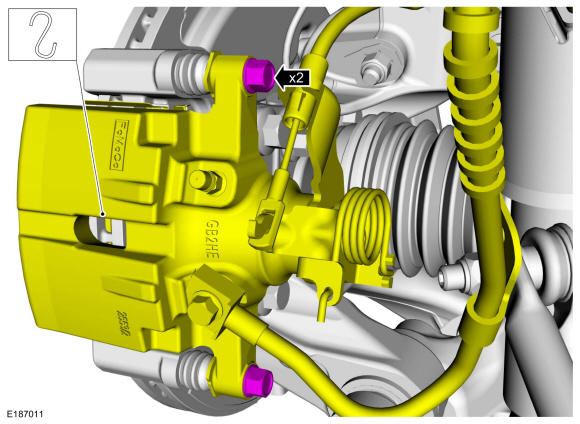

Remove the 2 bolts and position the brake caliper aside.
Torque: 24 lb.ft (32 Nm)

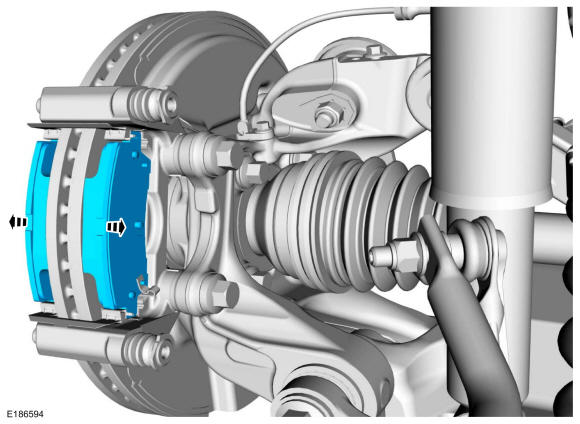

- Remove the brake pads.

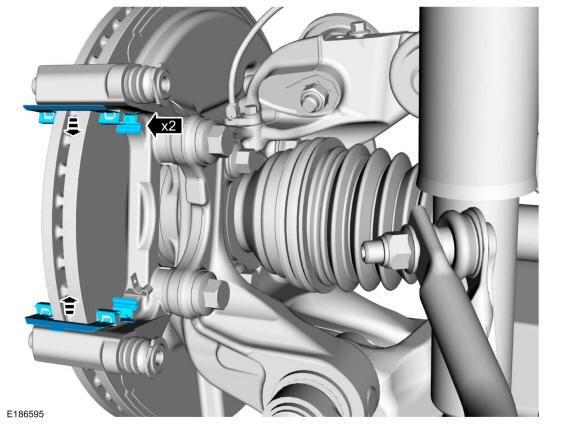

- Remove the clips.
-
NOTE: Make sure the notch on the piston is aligned with the pin on the inboard brake pad before installing the brake caliper. A moderate to heavy force toward the caliper piston must be applied. If sufficient force is not applied, the internal park brake mechanism clutch cone will not engage and the piston will not compress.

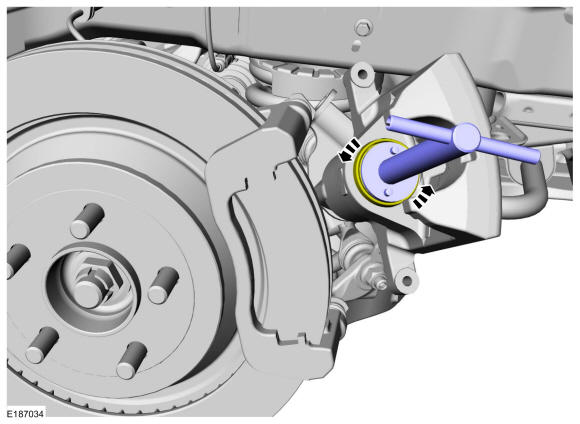

If installing new brake pads. Retract the brake caliper pistons into the brake caliper bore. Use the General Equipment: Brake Caliper Piston Retractor
