Rear Brake Pads - Vehicles With: SVT Performance Package: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove wheel and tire. Refer to: Wheel and Tire .

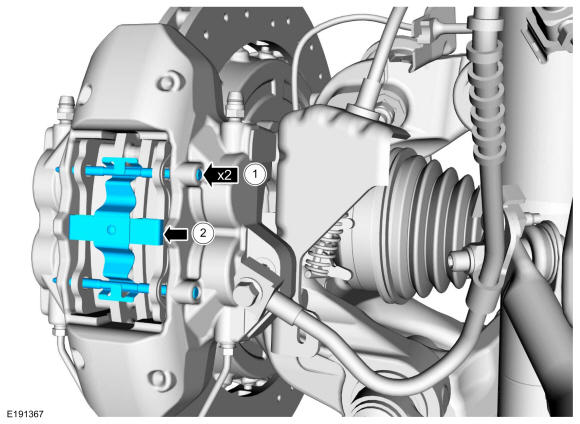

2. 1. Remove the brake pad pins.
   2. Remove brake pad spring.

   Courtesy of FORD MOTOR COMPANY

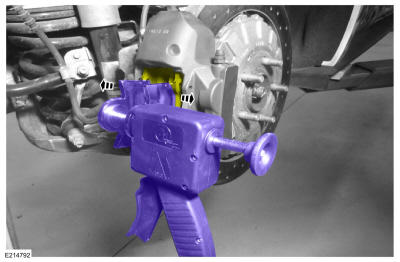

3. Compress the brake caliper pistons using a brake pad spreader tool and remove the brake pads. Use the General Equipment: Brake Caliper Piston Retractor

   Courtesy of FORD MOTOR COMPANY

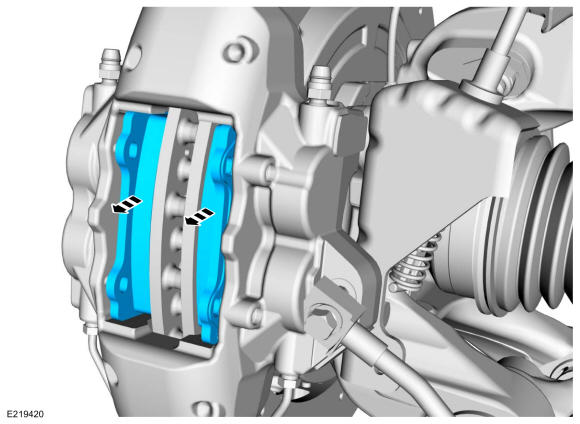

4. Remove the brake pads.

Courtesy of FORD MOTOR COMPANY
