Rear Brake Flexible Hose - Vehicles With: SVT Performance Package: Removal

NOTE: Make sure that all openings are sealed.

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

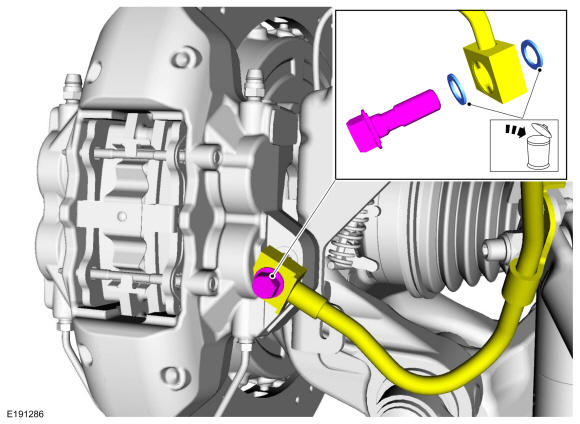

Remove the brake caliper flow bolt and disconnect the brake hose from the brake caliper. Discard the washers.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

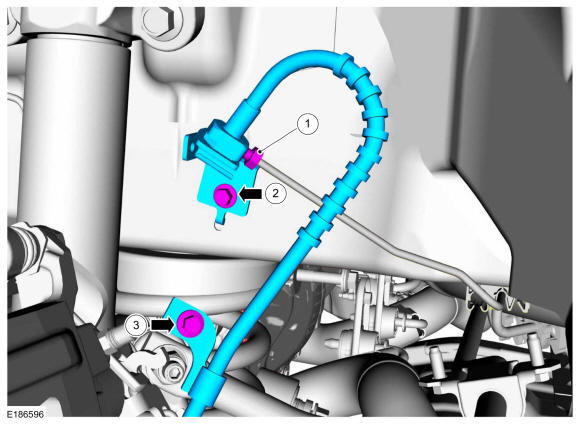

1. Disconnect the brake tube fitting.
  Torque: 155 lb.in (17.5 Nm)
2. Remove the upper brake hose bracket bolt.
  Torque: 18 lb.ft (25 Nm)
3. Remove the lower brake hose bracket bolt and the brake hose.
  Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
