Rear Brake Disc: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove wheel and tire. Refer to: Wheel and Tire .
-
NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose may occur.

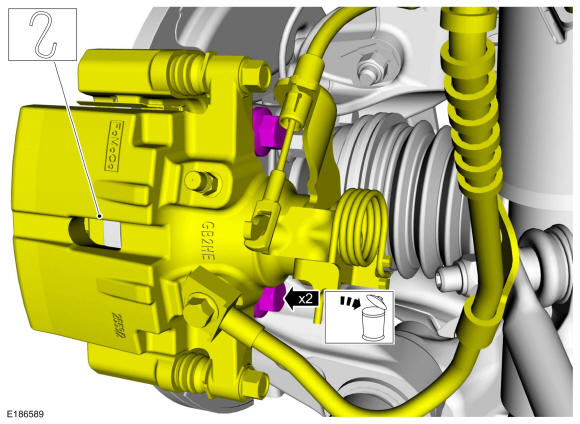

Remove the 2 bolts and position the brake caliper and anchor plate assembly aside. Discard the bolts.
Torque: 129 lb.ft (175 Nm)

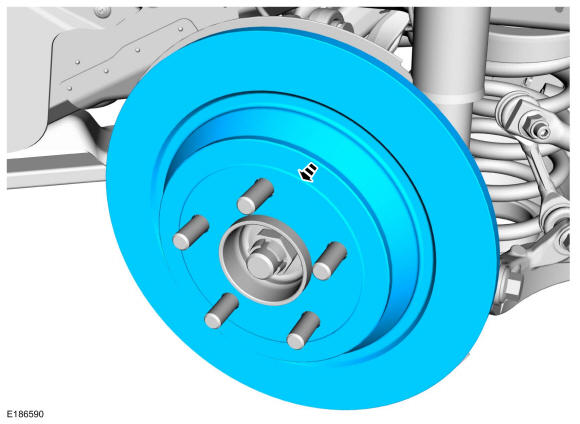

- Remove the brake disc.
