Rear Brake Disc Shield - Vehicles With: SVT Performance Package: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the parking brake shoes. Refer to: Parking Brake Shoes - Vehicles With: SVT Performance Package .
2. Remove the wheel bearing and wheel hub. Refer to: Wheel Bearing and Wheel Hub .

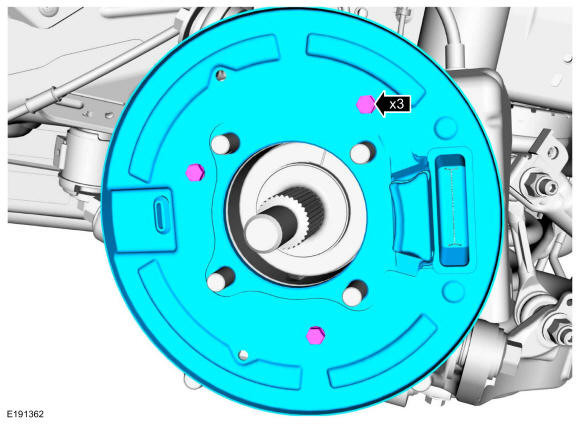

3. Remove the bolts and the brake disc shield.

   Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
