Rear Brake Disc - Vehicles With: SVT Performance Package: Removal

NOTE: Do not allow the brake caliper to hang from the brake hose or damage to the brake hose may occur.

NOTE: Removal steps in this procedure may contain installation details.

1. Remove wheel and tire. Refer to: Wheel and Tire .

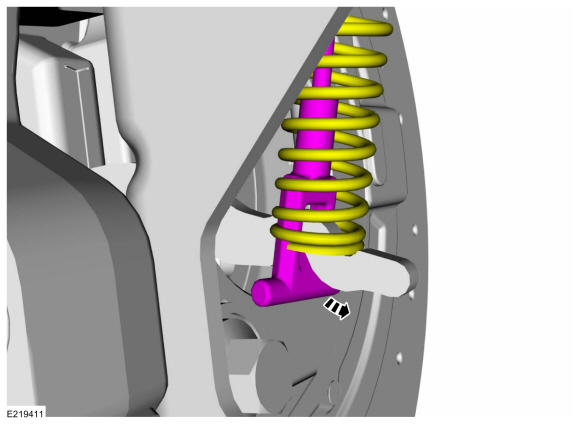

2. Disconnect parking brake cable from parking brake shoe actuation lever

   Courtesy of FORD MOTOR COMPANY

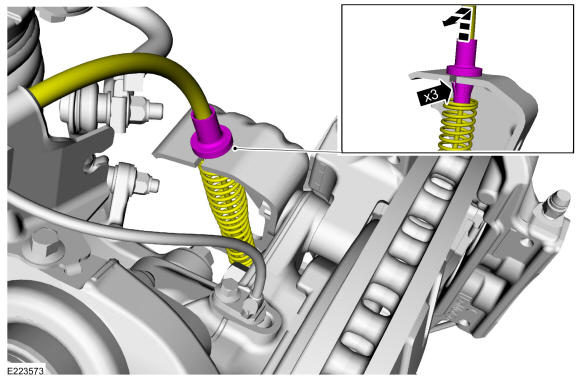

3. Press inward on the tabs and detach the parking brake cable from the bracket.

   Courtesy of FORD MOTOR COMPANY

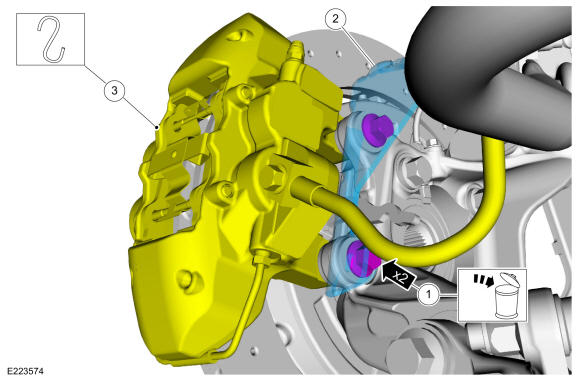

4. 1. Remove and discard the bolts.

      Torque: 81 lb.ft (110 Nm)

   2. Remove the bracket.
   3. Position the brake caliper aside.

   Courtesy of FORD MOTOR COMPANY

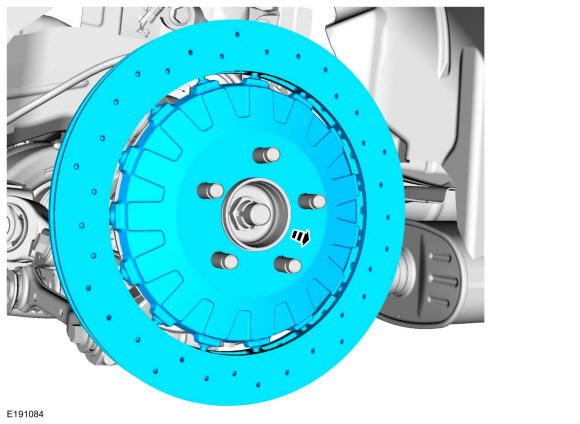

5. Remove the brake disc.

Courtesy of FORD MOTOR COMPANY
