Rear Brake Caliper: Removal

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove wheel and tire. Refer to: Wheel and Tire .

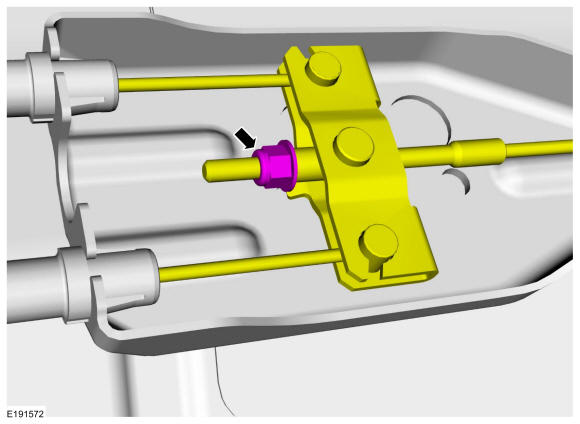

  2. Loosen the parking brake cable adjustment nut.
    GFD284839Courtesy of FORD MOTOR COMPANY

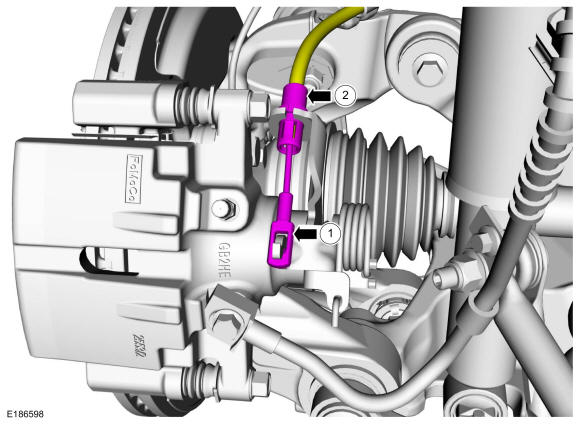

    1. Disconnect the parking brake cable from the lever.
    2. Detach the parking brake cable from the bracket and position aside the parking brake cable.
    GFD284840Courtesy of FORD MOTOR COMPANY

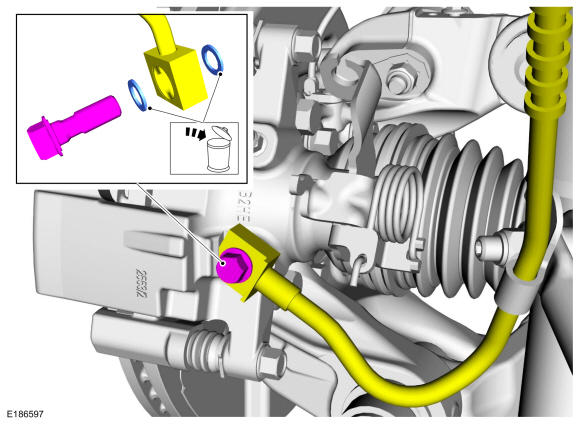

  4. NOTE: Make sure that all openings are sealed.

    Remove the brake caliper flow bolt and disconnect the brake hose from the brake caliper. Discard the washers.

    Torque: 35 lb.ft (47.5 Nm)

    GFD284841Courtesy of FORD MOTOR COMPANY

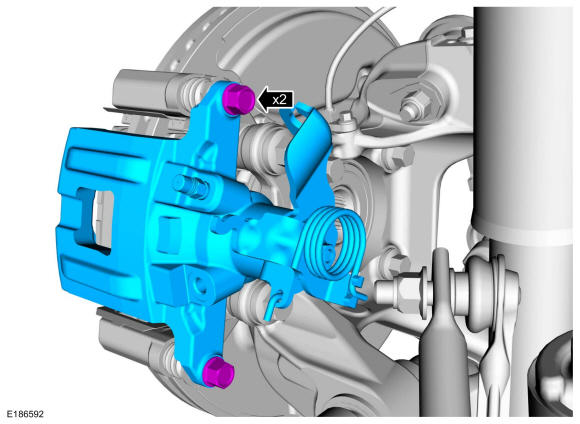

  5. Remove the 2 bolts and the brake caliper.

    Torque: 24 lb.ft (32 Nm)

GFD284842Courtesy of FORD MOTOR COMPANY
