Rear Brake Caliper Anchor Plate: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the brake pads. Refer to: Brake Pads .
-
NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose may occur.

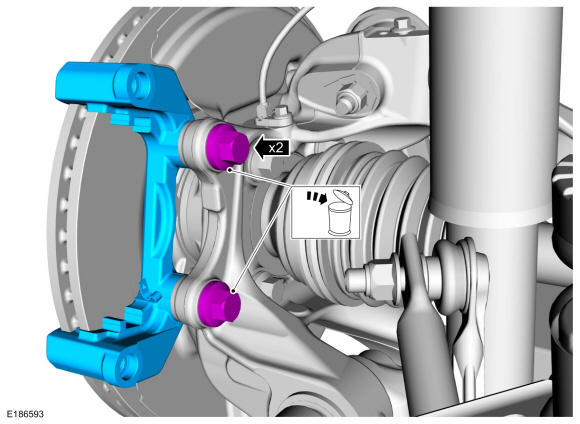

Remove the 2 bolts and the brake caliper anchor plate. Discard the bolts.
Torque: 129 lb.ft (175 Nm)
