Rear Brake Caliper - Vehicles With: SVT Performance Package: Removal

NOTE: Make sure that all openings are sealed.

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

Remove the brake pads. Refer to: Brake Pads - Vehicles With: SVT Performance Package .

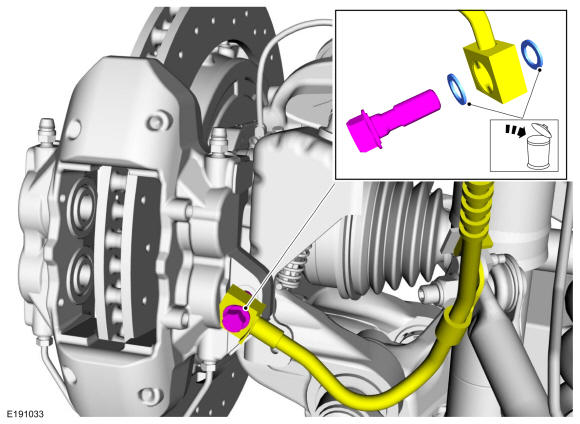

Remove the brake caliper flow bolt and disconnect the brake hose from the brake caliper. Discard the washers.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Disconnect parking brake cable from parking brake shoe actuation lever.

Courtesy of FORD MOTOR COMPANY
Press inward on the tabs and detach the parking brake cable from the bracket.

Courtesy of FORD MOTOR COMPANY

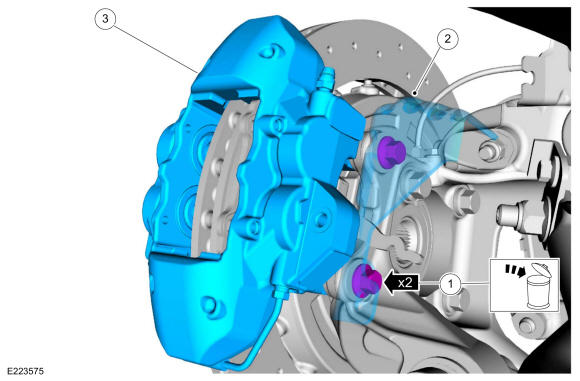

1. Remove and discard the bolts.
  Torque: 81 lb.ft (110 Nm)
2. Remove the bracket.
3. Remove the brake caliper.

Courtesy of FORD MOTOR COMPANY
