Rear Brake Caliper - Vehicles With: SVT Performance Package: Installation

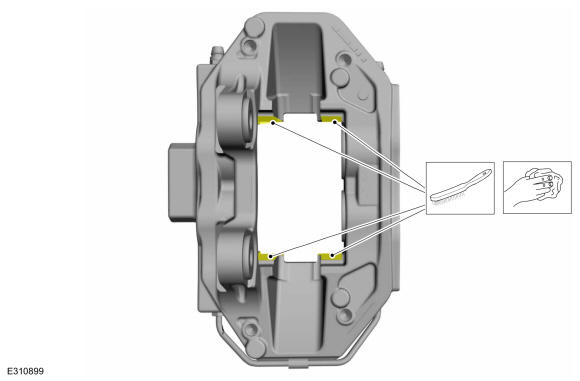

  1. Clean the brake pad-to-caliper contact surfaces.
    GFD284856Courtesy of FORD MOTOR COMPANY

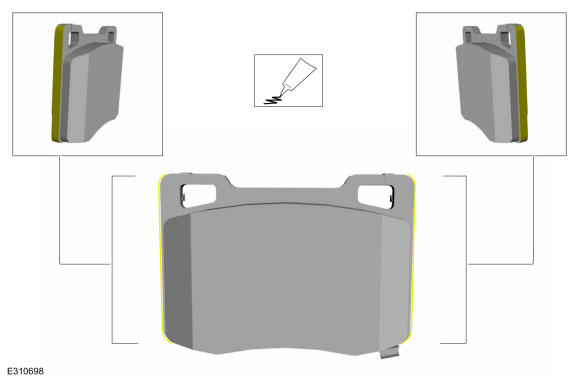

  2. NOTE: If installing new brake pads, make sure to install all new hardware and lubricant supplied with the brake pad kit. Refer to the brake pad instruction sheet when applying lubricant.

    Clean the brake pad-to-caliper contact surfaces and apply the lubricant supplied with the brake pad kit.

    GFD284857Courtesy of FORD MOTOR COMPANY
  3. To install, reverse the removal procedure.
  4. Bleed the brake system. Refer to: Brake System Pressure Bleeding .
