Front Brake Pads - Vehicles With: 6-Piston Brake Caliper: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the wheel and tire. Refer to: Wheel and Tire .

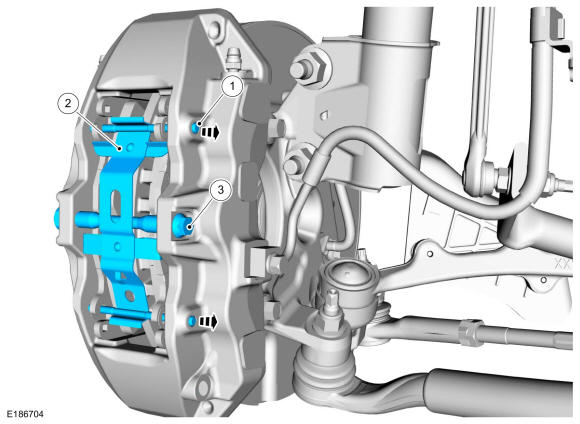

2. 1. Remove the 2 brake pad pins.
   2. Remove the brake pad spring retainer clip.
   3. Remove the brake caliper pin bolt.

      Torque: 22 lb.ft (30 Nm)

   Courtesy of FORD MOTOR COMPANY

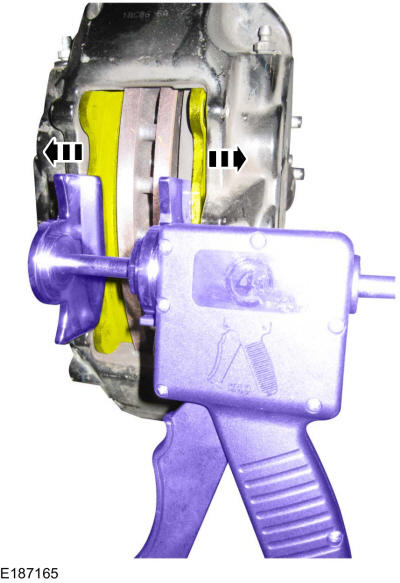

3. Compress the brake caliper pistons using a brake pad spreader tool.

   Courtesy of FORD MOTOR COMPANY

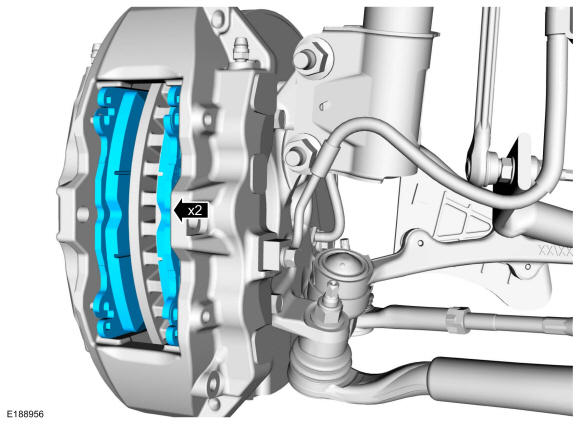

4. Remove the brake pads.

Courtesy of FORD MOTOR COMPANY
