Front Brake Pads - Vehicles With: 4-Piston Brake Caliper: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the wheel and tire. Refer to: Wheel and Tire .

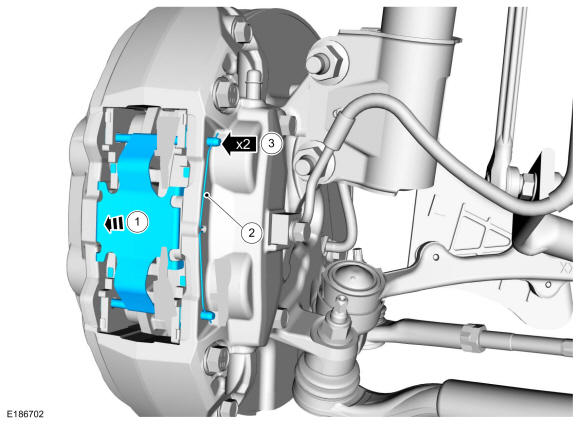

2. 1. Remove brake pad spring.
   2. Remove the brake pad pin clip.
   3. Remove the 2 brake pad pins.

   Courtesy of FORD MOTOR COMPANY

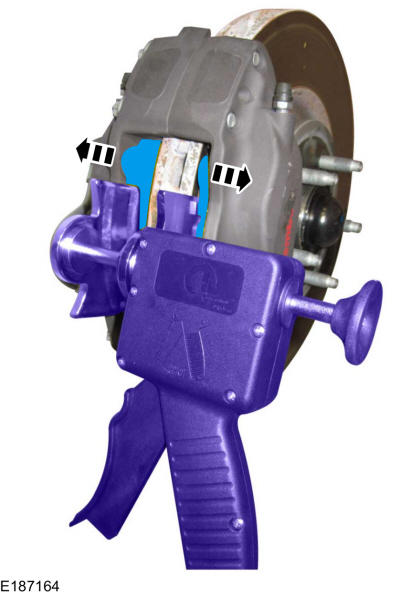

3. Compress the brake caliper pistons using a brake pad spreader tool and remove the brake pads.

Courtesy of FORD MOTOR COMPANY
