Front Brake Flexible Hose: Removal

NOTE: Make sure all openings are sealed.

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

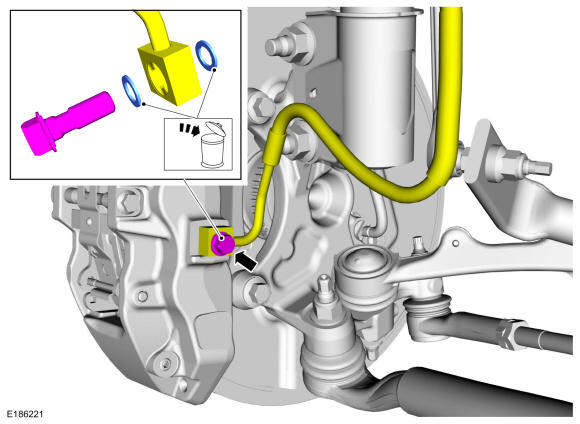

2-piston brake caliper

Remove the brake caliper flow bolt and detach the front brake flexible hose.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

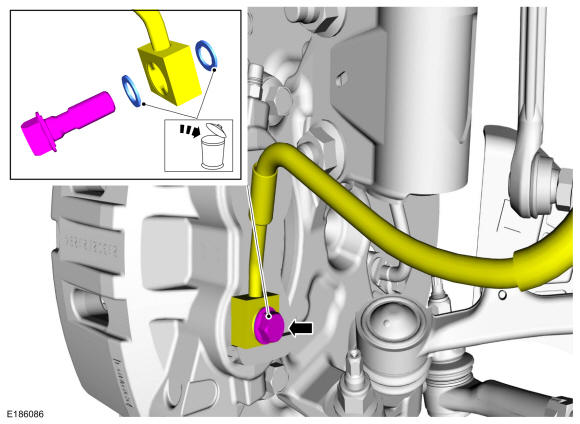

4-piston brake caliper
Remove the brake caliper flow bolt and detach the front brake flexible hose.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

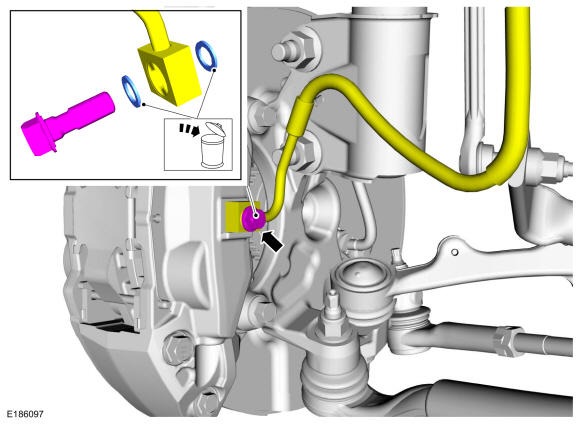

6-piston brake caliper
Remove the brake caliper flow bolt and detach the front brake flexible hose.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

All brake calipers
If equipped. Remove the flexible hose bracket mounting bolt.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
1. Disconnect the brake tube fitting.
  Torque: 155 lb.in (17.5 Nm)
2. Remove the bolt and the front brake flexible hose.
  Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
