Front Brake Caliper - Vehicles With: 2-Piston Brake Caliper: Removal

NOTE: Make sure that all openings are sealed.

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the wheel and tire. Refer to: Wheel and Tire .

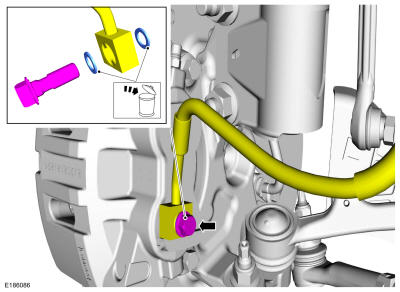

2. Remove the brake caliper flow bolt and disconnect the brake hose. Discard the washers.

   Torque: 30 lb.ft (40 Nm)

   Courtesy of FORD MOTOR COMPANY

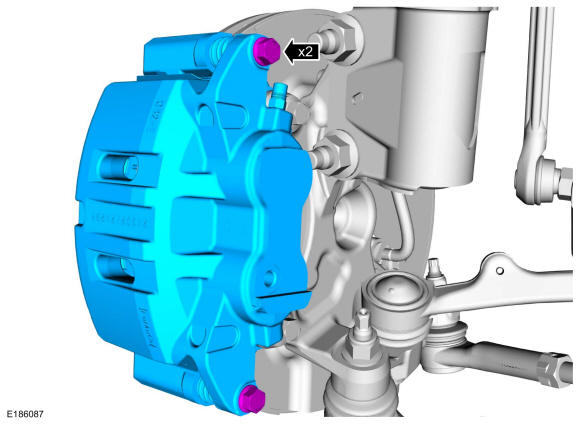

3. Remove the 2 guide pin bolts and the brake caliper.

   Torque: 24 lb.ft (32 Nm)

Courtesy of FORD MOTOR COMPANY
