Removal And Installation: Hood: Removal

NOTE: Removal steps in this procedure may contain installation details.

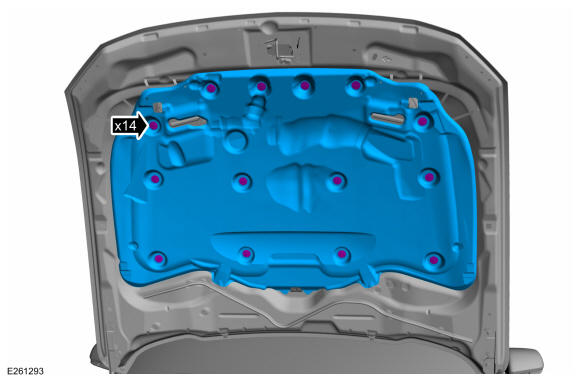

  1. Remove the retainers and hood insulation.
    GFD289387Courtesy of FORD MOTOR COMPANY

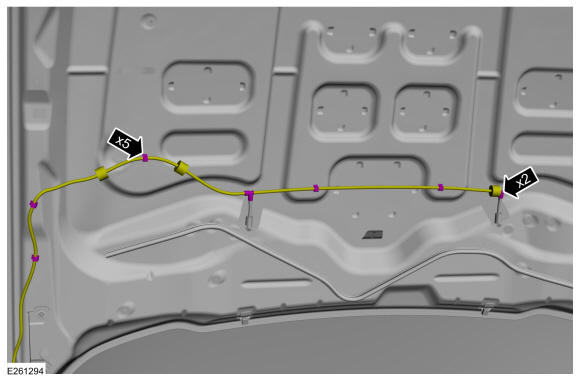

  2. Detach the windshield washer hose retainers and couplings.
    GFD289388Courtesy of FORD MOTOR COMPANY

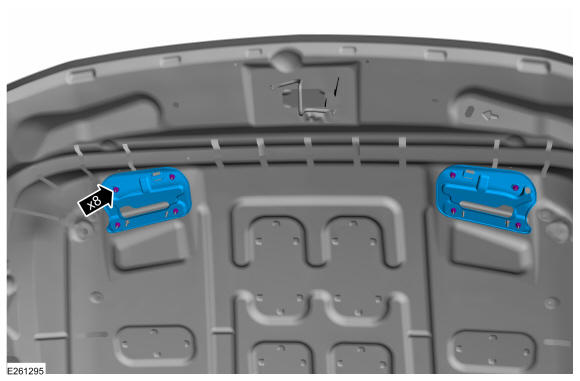

  3. NOTE: This step is only necessary when installing a new component.

    Remove the nuts and the brackets.

    Torque

    : 27 lb.in (3 Nm)

    GFD289389Courtesy of FORD MOTOR COMPANY

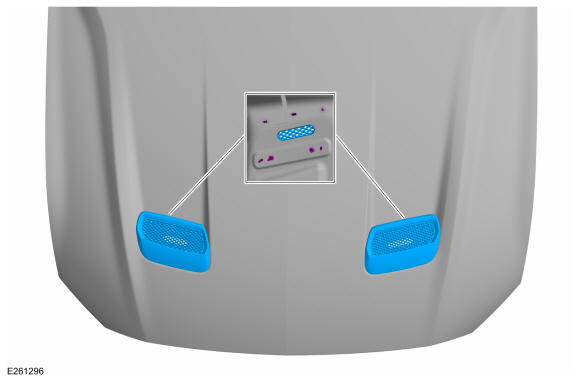

  4. NOTE: This step is only necessary when installing a new component.

    Remove the scoop assemblies.

    GFD289390Courtesy of FORD MOTOR COMPANY

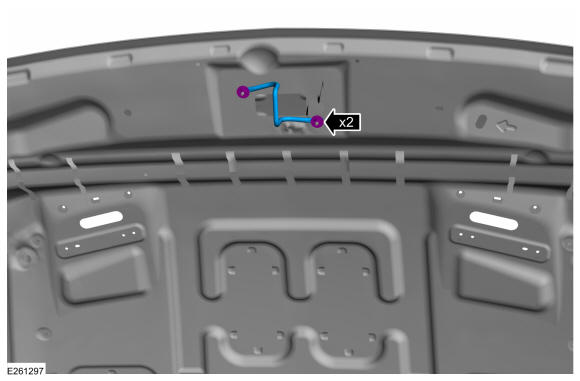

  5. NOTE: This step is only necessary when installing a new component.

    Remove the striker latch to hood bolts and the striker latch.

    Torque

    : 106 lb.in (12 Nm)

    GFD289391Courtesy of FORD MOTOR COMPANY

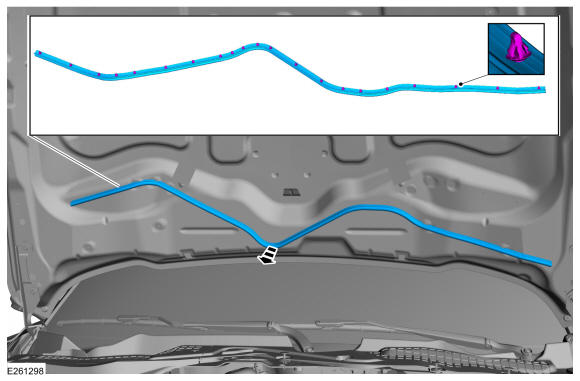

  6. NOTE: This step is only necessary when installing a new component.

    Remove the retainers and the hood pad assembly.

    GFD289392Courtesy of FORD MOTOR COMPANY

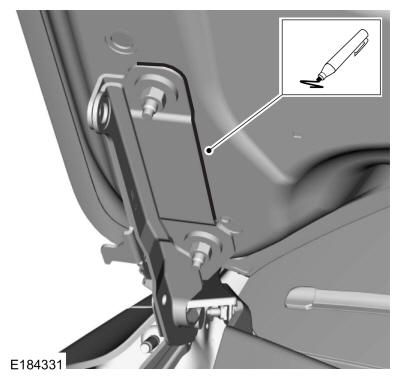

  7. NOTE: RH side shown, LH side similar.

    Index-mark the hood hinge location to aid in hood installation.

    GFD289393Courtesy of FORD MOTOR COMPANY

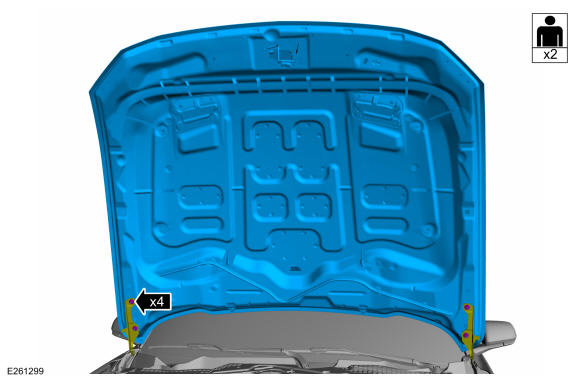

  8. NOTE: An assistant is necessary for the removal of the hood.

    Remove the nuts and the hood.

    Torque

    : 106 lb.in (12 Nm)

GFD289394Courtesy of FORD MOTOR COMPANY
