Cowl Panel Grille: Removal

NOTE: LHD shown, RHD similar.
  1. Remove the wiper pivot arms. Refer to: Windshield Wiper Pivot Arm - LHD .

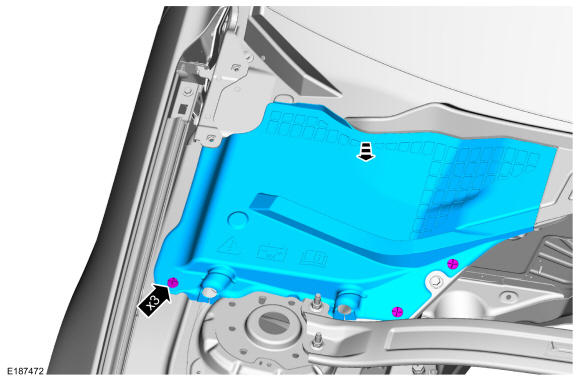

  2. Remove the retainers and the battery cover.
    GFD289366Courtesy of FORD MOTOR COMPANY

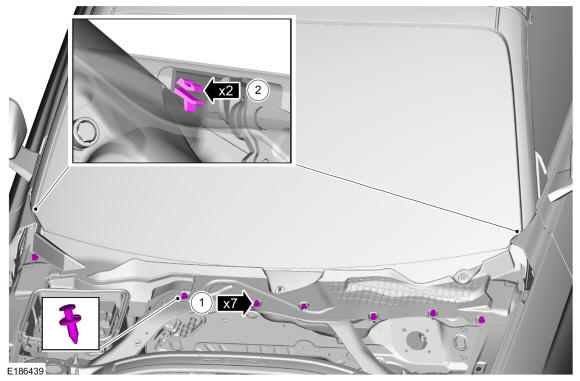

  3. Remove the retainers and the clips.

    1. Remove the retainers.
    2. Depress and remove the clips.

    GFD289367Courtesy of FORD MOTOR COMPANY

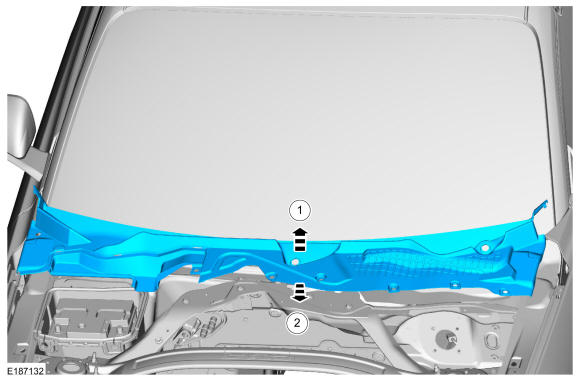

    1. Lift the cowl panel grille up.
    2. Pull the cowl panel grille out and remove.
GFD289368Courtesy of FORD MOTOR COMPANY
