Active Grille Shutter: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the front bumper cover. Refer to: Front Bumper Cover .

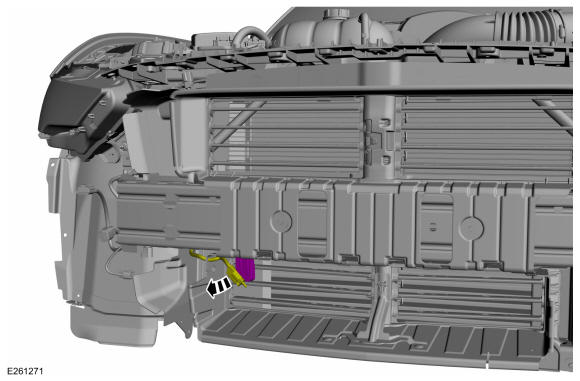

- Detach the ambient air temperature sensor.

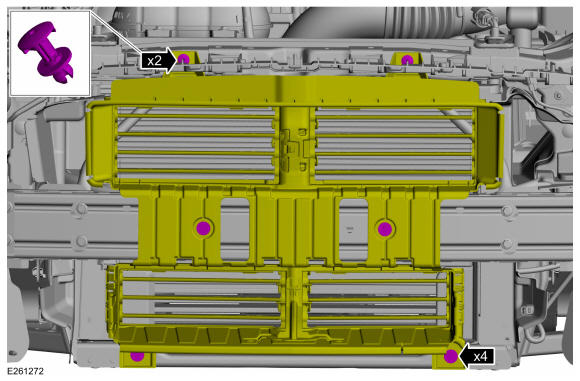

- Remove the retainers, the bolts and position the active grille shutter forward.
Torque
: 71 lb.in (8 Nm)
-
NOTE: Radiator and condenser removed for clarity.

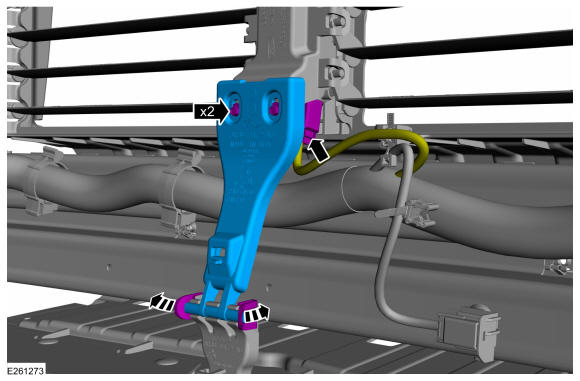

- Remove the retainers and the bridge link.
Torque
: 18 lb.in (2 Nm)
- Disconnect the active grille shutter actuator electrical connector.
- Remove the retainers and the bridge link.

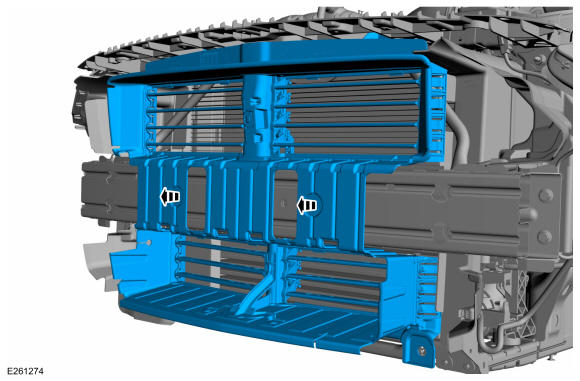

- Remove the active grille shutter.
