Rear Bumper Cover: Removal

All Vehicles

1. Remove the rear wheels and tires. Refer to: Wheel and Tire .

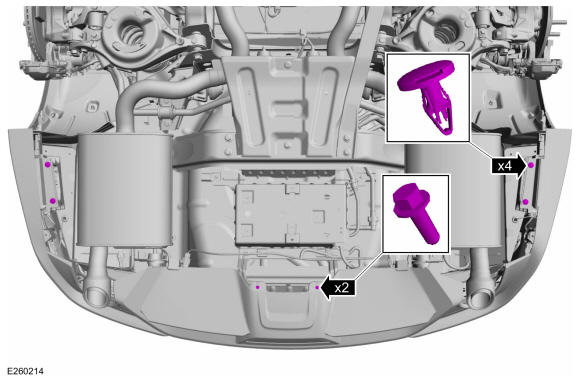

2. Remove the screws and the push pins.

   Torque

   : 18 lb.in (2 Nm)

   Courtesy of FORD MOTOR COMPANY

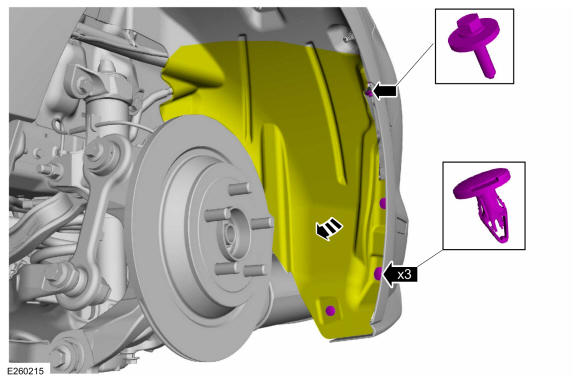

3. On both sides. Remove the screw, the push pins and position the wheel liner aside.

   Courtesy of FORD MOTOR COMPANY

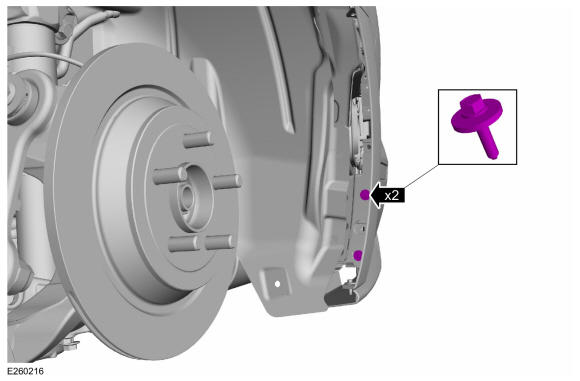

4. On both sides. Remove the bumper cover to bracket screws.

   Torque

   : 18 lb.in (2 Nm)

   Courtesy of FORD MOTOR COMPANY

5. Remove the rear lamp assemblies. Refer to: Rear Lamp Assembly .

   Vehicles with cellular phone antenna

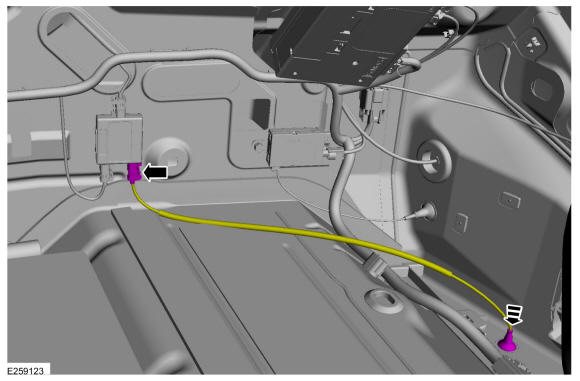

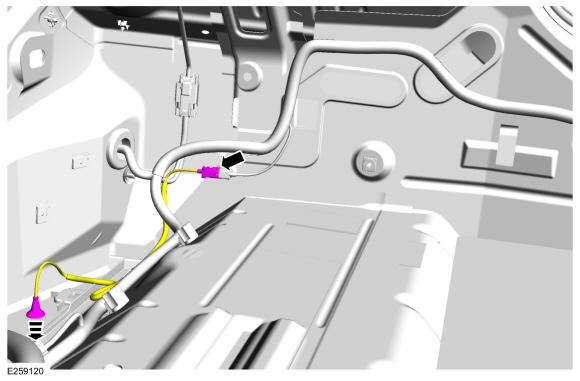

6. NOTE: RH side cellular antenna.

   Disconnect the RH cellular antenna cable from the wiring harness and push the grommet through the vehicle body.

   Courtesy of FORD MOTOR COMPANY

7. NOTE: LH side cellular antenna.

   Disconnect the LH cellular antenna cable from the wiring harness and push the grommet through the vehicle body.

   Courtesy of FORD MOTOR COMPANY

   All Vehicles

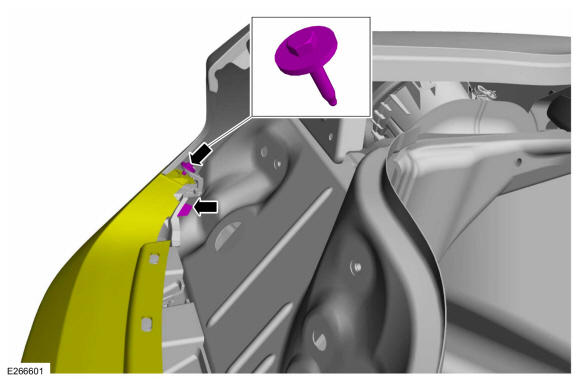

8. On both sides. Remove the front bumper cover bolt and release the tab.

   Courtesy of FORD MOTOR COMPANY

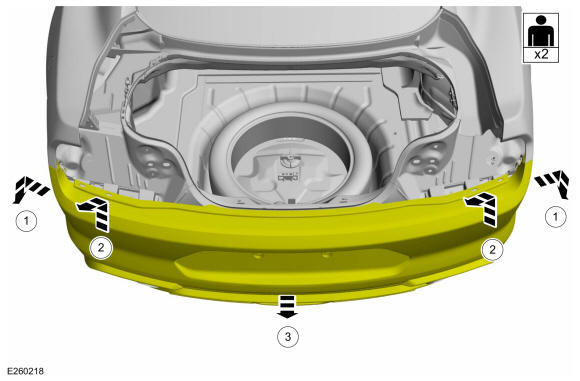

9. With the help of an assistant. Position the rear bumper cover aside for access to electrical connector.
   1. Release the sides of the rear bumper cover from the side brackets.
   2. Lift up and release the rear bumper cover from the outer rear brackets.
   3. Release the center of the rear bumper cover from the rear brackets and position aside.

   Courtesy of FORD MOTOR COMPANY

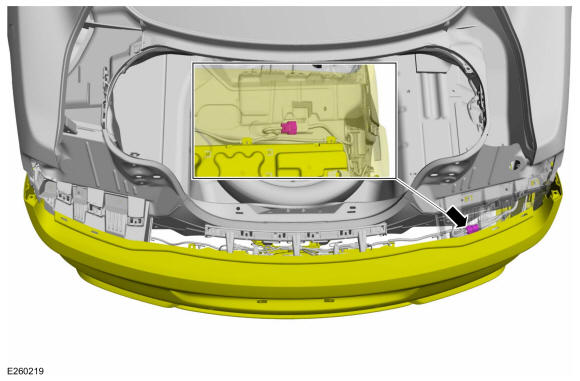

10. Disconnect the rear bumper wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

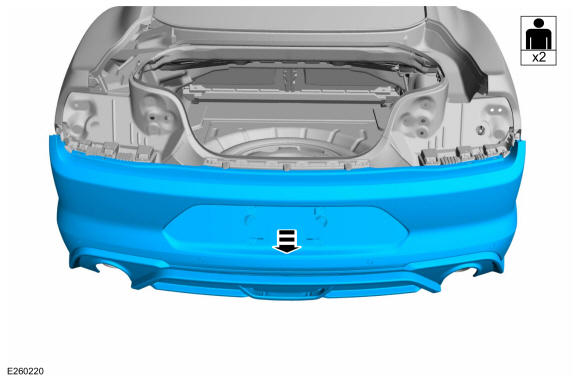

11. With the help of an assistant. Remove the rear bumper cover.

    Courtesy of FORD MOTOR COMPANY

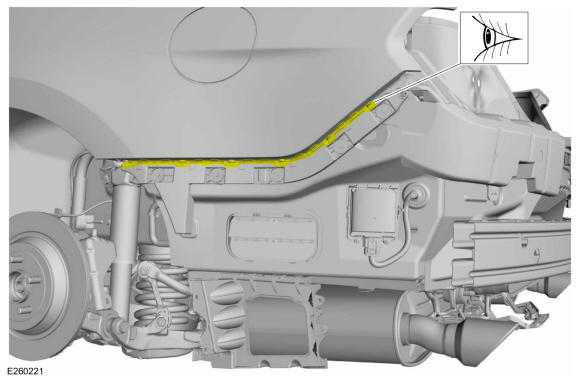

12. On both sides. Inspect the side bracket for damage.

    Courtesy of FORD MOTOR COMPANY

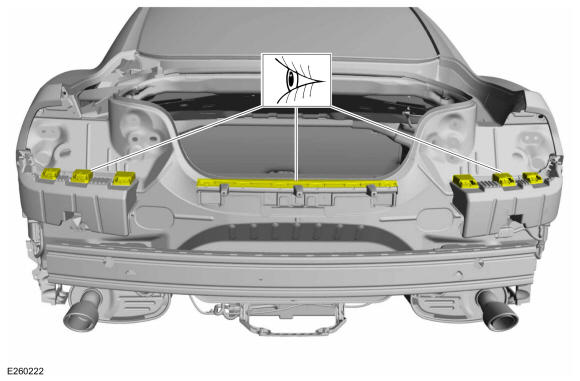

13. Inspect the rear brackets for damage.

    Courtesy of FORD MOTOR COMPANY

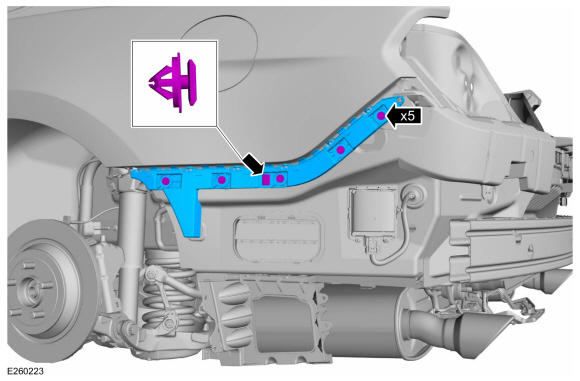

14. If required, on both sides. Remove the screws, pin-type retainer and the rear bumper cover side bracket.

    Torque

    : 18 lb.in (2 Nm)

    Courtesy of FORD MOTOR COMPANY

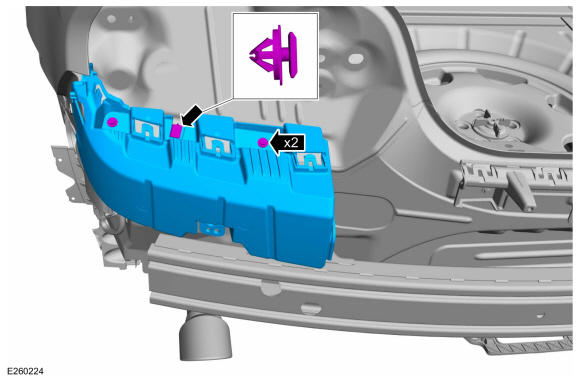

15. NOTE: LH side only.

    If required. Remove the screws, pin-type retainer and the rear bumper cover outer rear bracket.

    Torque

    : 18 lb.in (2 Nm)

    Courtesy of FORD MOTOR COMPANY

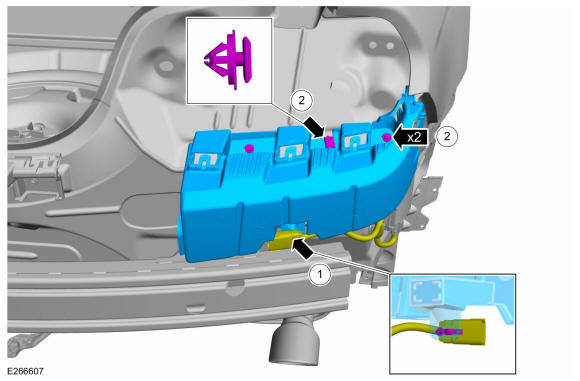

16. NOTE: RH side only.

    If required.

    1. Disconnect the rear bumper cover wiring harness connector retainer.
    2. Remove the screws, pin-type retainer and the rear bumper cover outer rear bracket.

       Torque

       : 18 lb.in (2 Nm)

    Courtesy of FORD MOTOR COMPANY

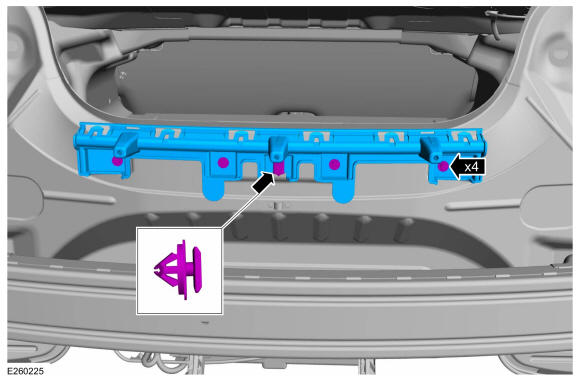

17. If required. Remove the screws, pin-type retainer and the rear bumper cover center rear bracket.

    Torque

    : 18 lb.in (2 Nm)

Courtesy of FORD MOTOR COMPANY
