Front Bumper: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the front bumper cover. Refer to: Front Bumper Cover .

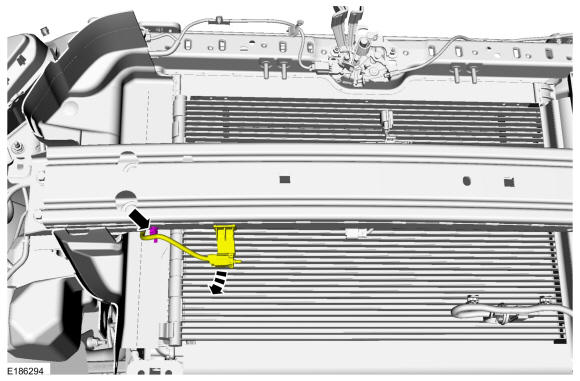

Position aside the ambient air temperature sensor bracket and wiring harness guide.

Courtesy of FORD MOTOR COMPANY
If equipped, remove the active grille shutter assembly. Refer to: Active Grille Shutter .
If equipped, remove the CCM and bracket. Refer to: Cruise Control Module (CCM) .

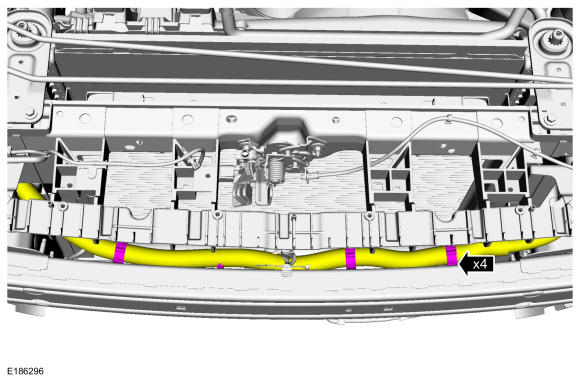

Separate the wiring harness guides.

Courtesy of FORD MOTOR COMPANY

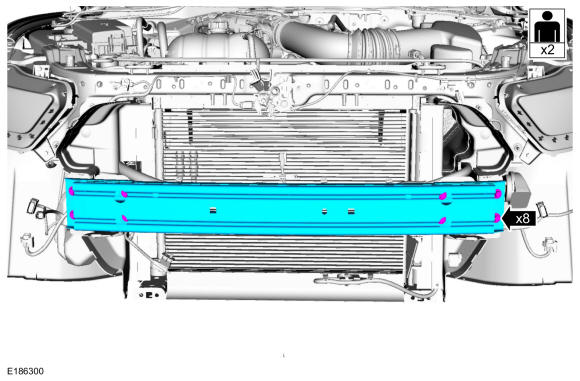

Remove the bolts and the front bumper.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
