Front Bumper Cover: Removal

All vehicles

1. Remove the front wheels and tires. Refer to: Wheel and Tire .

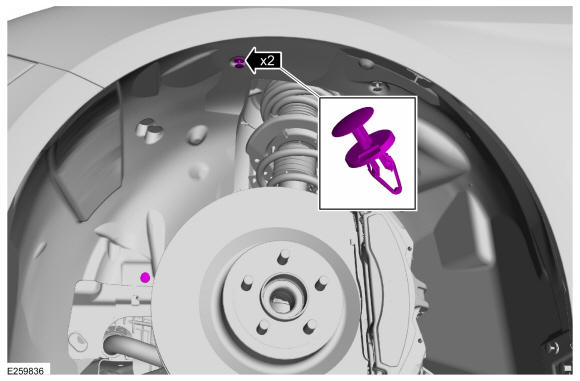

2. On both sides. Remove the push pins.

   Courtesy of FORD MOTOR COMPANY

   Vehicles equipped with V8 performance package

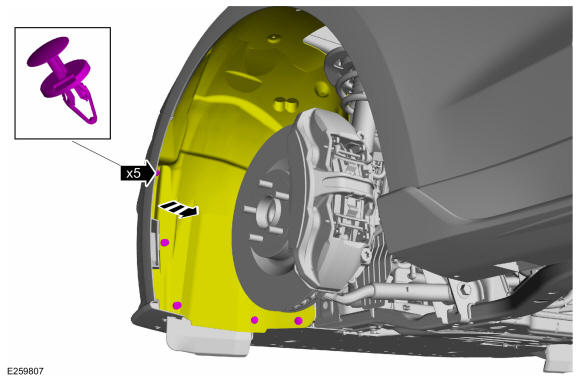

3. On both sides. Remove the push pins and position the inner fender liner aside.

   Courtesy of FORD MOTOR COMPANY

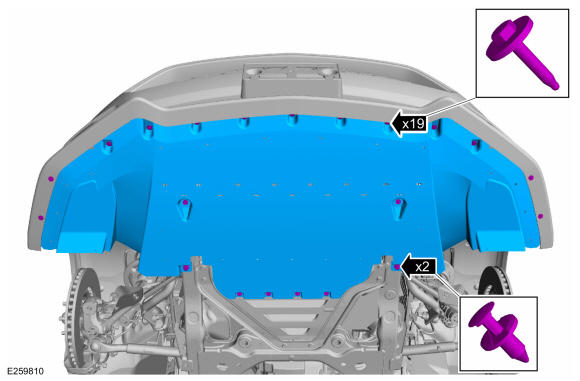

4. Remove the push pins, screws and the lower air deflector.

   Torque

   : 18 lb.in (2 Nm)

   Courtesy of FORD MOTOR COMPANY

   Vehicles not equipped with V8 performance package

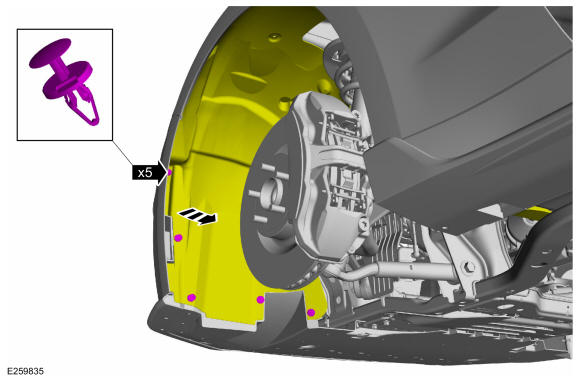

5. On both sides. Remove the push pins and position the inner fender liner aside.

   Courtesy of FORD MOTOR COMPANY

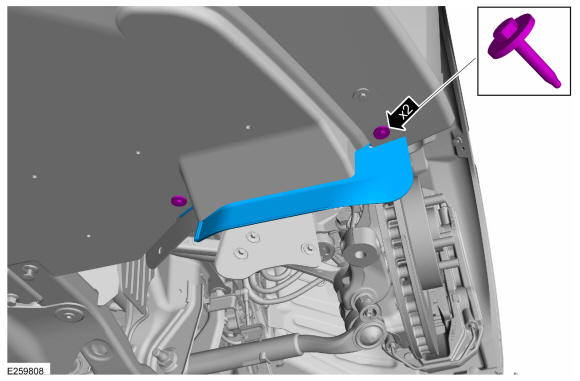

6. On both sides. Remove the screws and the front stone deflector extension.

   Torque

   : 18 lb.in (2 Nm)

   Courtesy of FORD MOTOR COMPANY

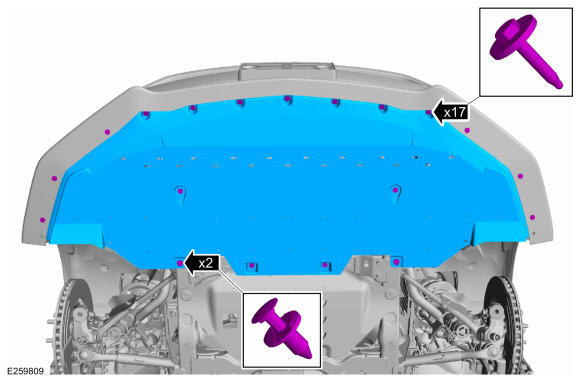

7. Remove the push pins, screws and the lower air deflector.

   Torque

   : 18 lb.in (2 Nm)

   Courtesy of FORD MOTOR COMPANY

   All vehicles

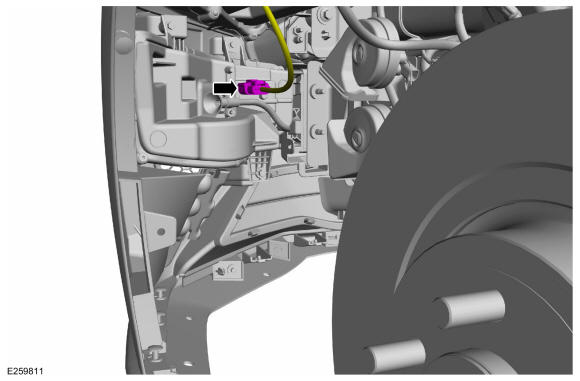

8. On both sides. Disconnect the fog lamp electrical connector.

   Courtesy of FORD MOTOR COMPANY

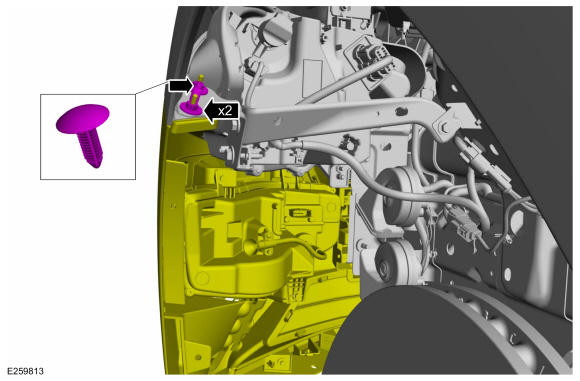

9. On both sides. Remove the front bumper cover to fender push-pin and the nuts.

   Torque

   : 44 lb.in (5 Nm)

   Courtesy of FORD MOTOR COMPANY

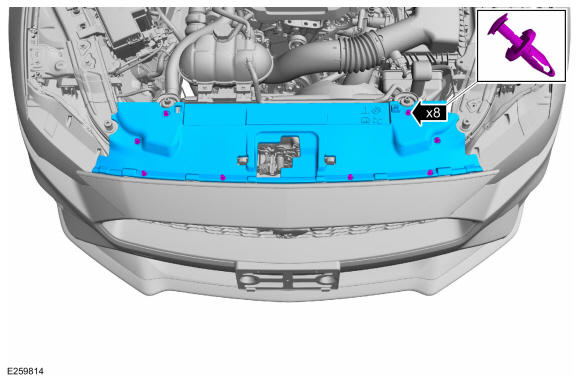

10. Remove the push pins and the radiator sight shield.

    Courtesy of FORD MOTOR COMPANY

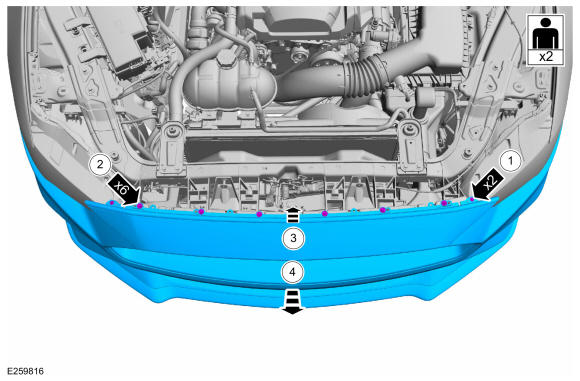

11. With the help of an assistant. Remove the front bumper cover.
    1. Remove the screws.

       Torque

       : 18 lb.in (2 Nm)

    2. Remove the screws.

       Torque

       : 53 lb.in (6 Nm)

    3. Lift the front bumper cover up and off the alignment pins.
    4. Pull the front bumper cover forward and off the vehicle.

Courtesy of FORD MOTOR COMPANY
