Rear Bumper Cover: Disassembly

All vehicles

1. Remove the rear bumper cover. Refer to: Rear Bumper Cover .
2. Separate the wiring harness guides from the rear bumper cover reinforcement.

   Courtesy of FORD MOTOR COMPANY

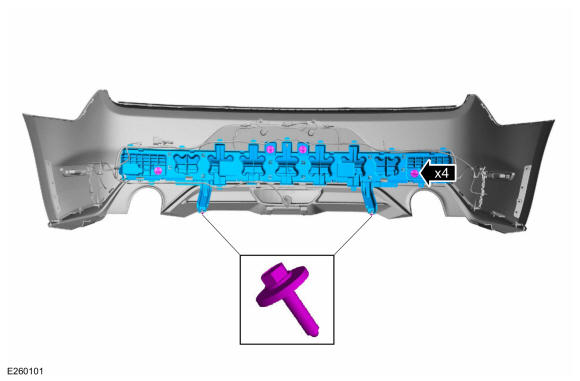

3. Remove the screws, release the tabs and remove the rear bumper cover reinforcement.

   Torque

   : 18 lb.in (2 Nm)

   Courtesy of FORD MOTOR COMPANY

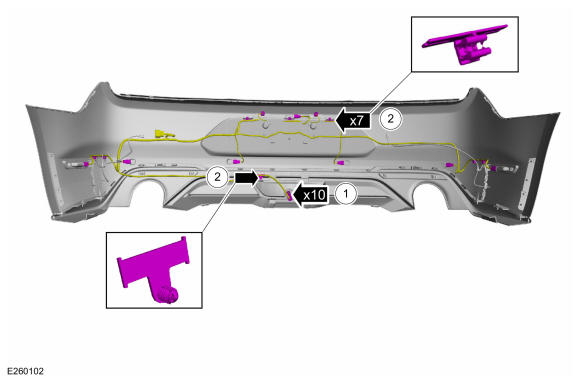

4. Remove the rear bumper wiring harness.
   1. Disconnect the electrical connectors.
   2. Disconnect the wiring guides.

   Courtesy of FORD MOTOR COMPANY

   Vehicles with cellular phone antenna

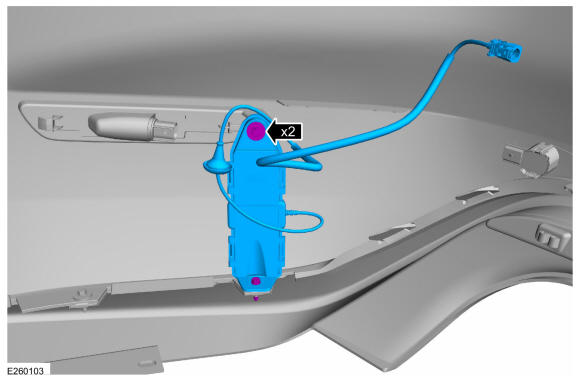

5. On both sides. Remove the screws and the 4G cellular phone antenna.

   Torque

   : 18 lb.in (2 Nm)

   Courtesy of FORD MOTOR COMPANY

   All vehicles

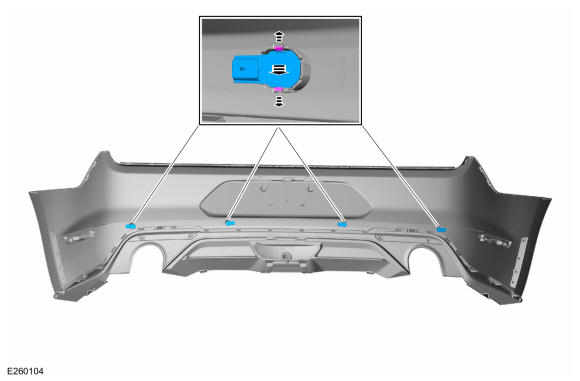

6. NOTE: Make sure that the isolator rings are installed correctly while installing the sensors.

   Release the tabs, remove the park aid sensors from the brackets.

   Courtesy of FORD MOTOR COMPANY

7. Remove the screws and the reversing lamp.

   Torque

   : 18 lb.in (2 Nm)

   Courtesy of FORD MOTOR COMPANY

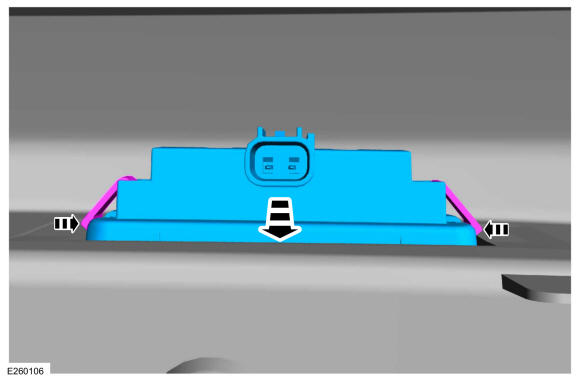

8. On both sides. Press the tabs and remove the license plate lamp.

   Courtesy of FORD MOTOR COMPANY

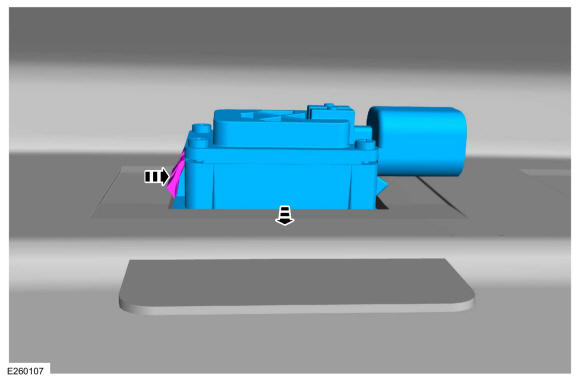

9. Press the tabs and remove the decklid release switch.

   Courtesy of FORD MOTOR COMPANY

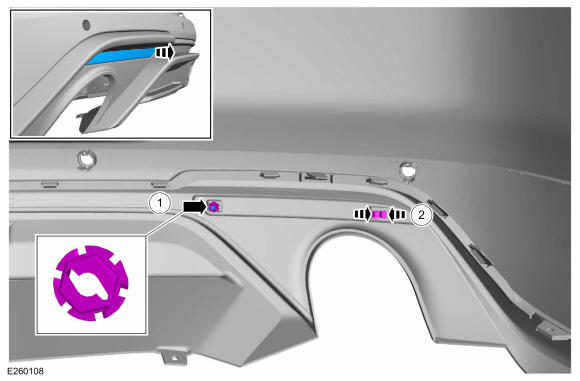

10. On both sides.
    1. Remove the speed nut.

       Torque

       : 13 lb.in (1.5 Nm)

    2. Release the tab and remove the rear reflector.

    Courtesy of FORD MOTOR COMPANY

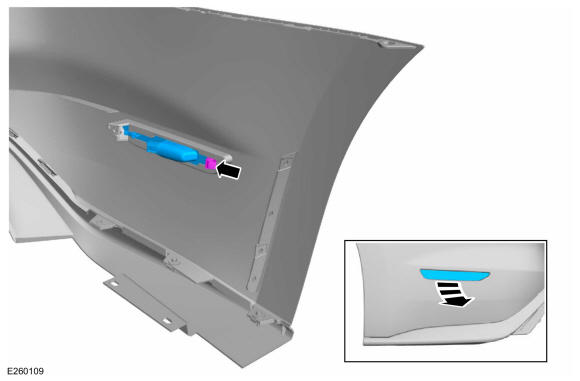

11. On both sides. Release the tab and remove the side marker lamp.

    Courtesy of FORD MOTOR COMPANY

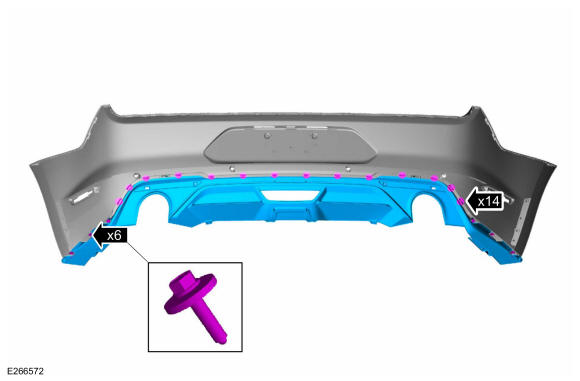

12. Remove the screws, release the tabs and remove the lower bumper cover.

    Torque

    : 18 lb.in (2 Nm)

    Courtesy of FORD MOTOR COMPANY

    Vehicles with cellular phone antenna

13. Remove the screws, release the tabs and remove the lower bumper cover.

    Torque

    : 18 lb.in (2 Nm)

    Courtesy of FORD MOTOR COMPANY

    All vehicles

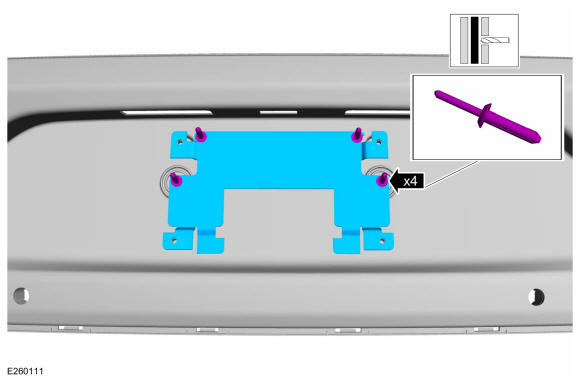

14. If equipped. Drill the rivets and remove the rear license plate bracket.

Courtesy of FORD MOTOR COMPANY
