Rear Bumper Cover - Vehicles With: SVT Performance Package: Disassembly

All vehicles

1. Remove the rear bumper cover. Refer to: Rear Bumper Cover - Vehicles With: SVT Performance Package .
2. Disconnect the rear bumper cover wiring harness electrical connectors.

   Courtesy of FORD MOTOR COMPANY

3. Release the rear bumper cover wiring harness guides and remove the wiring harness.

   Courtesy of FORD MOTOR COMPANY

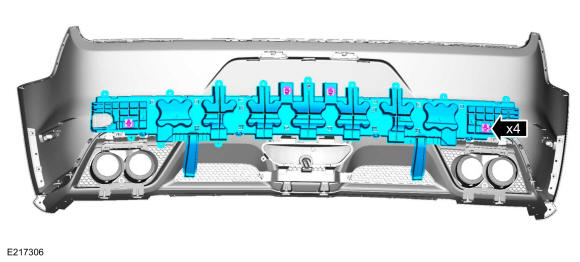

4. Release the tabs and remove the rear bumper reinforcement.

   Courtesy of FORD MOTOR COMPANY

   Vehicles with cellular phone antenna

5. On both sides. Remove the screws and the 4G cellular phone antenna.

   Torque

   : 18 lb.in (2 Nm)

   Courtesy of FORD MOTOR COMPANY

   All vehicles

6. NOTE: On both sides.

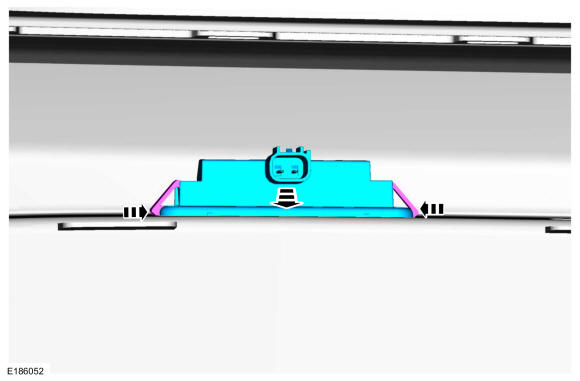

   Press the tabs and remove the license plate lamp.

   Courtesy of FORD MOTOR COMPANY

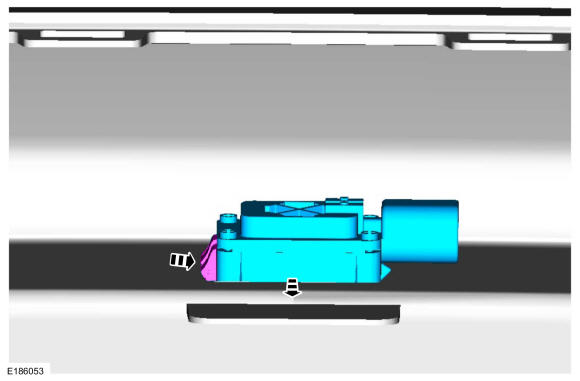

7. Press the tabs and remove the decklid release switch.

   Courtesy of FORD MOTOR COMPANY

8. NOTE: On both sides.

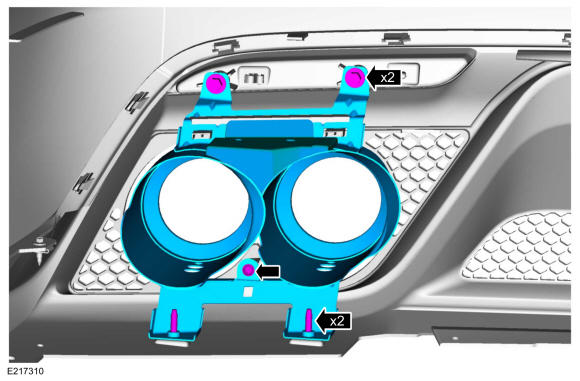

   Remove the screws and the exhaust outlet heat shields.

   Courtesy of FORD MOTOR COMPANY

9. NOTE: On both sides.

   Release the tab and remove the side marker lamp.

   Courtesy of FORD MOTOR COMPANY

10. NOTE: On both sides.

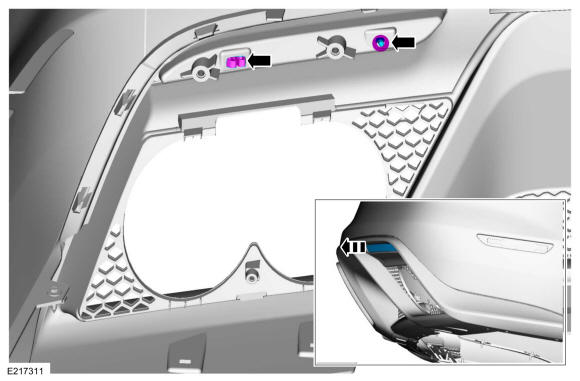

    Remove the nut, release the tabs and remove the and the rear reflector.

    Torque

    : 13 lb.in (1.5 Nm)

    Courtesy of FORD MOTOR COMPANY

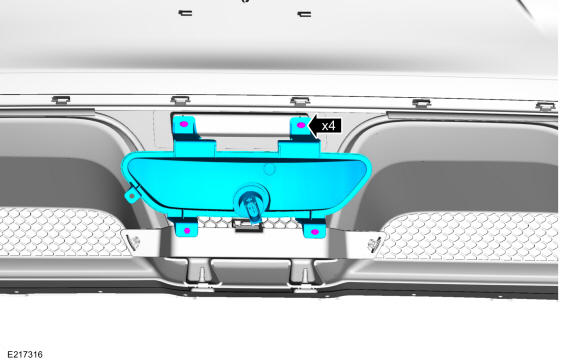

11. Remove the screws and the reversing lamp.

    Torque

    : 15 lb.in (1.7 Nm)

    Courtesy of FORD MOTOR COMPANY

12. Remove the screws, the clips and the lower reinforcement.

    Courtesy of FORD MOTOR COMPANY

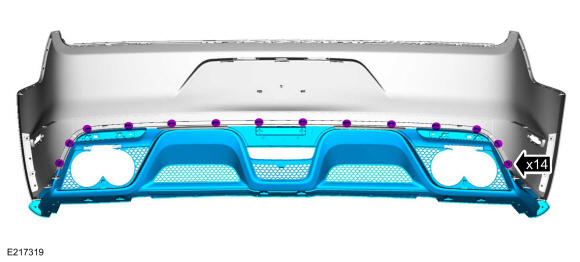

13. Remove the lower bumper cover screws.

    Courtesy of FORD MOTOR COMPANY

14. Release the tabs and remove the lower bumper cover.

Courtesy of FORD MOTOR COMPANY
