Luggage Compartment Lid: Removal

All vehicles

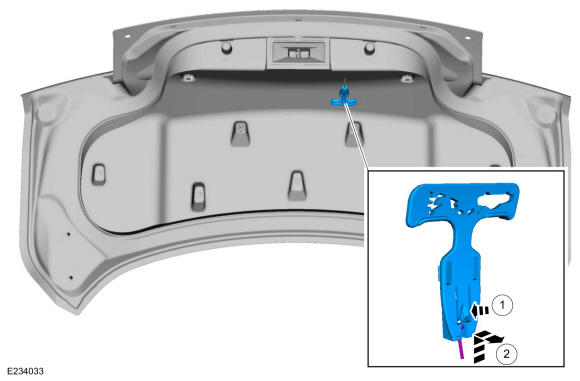

1. Remove the luggage compartment lid emergency release handle.
   1. Press down the luggage compartment lid emergency release handle retaining tab.
   2. Remove the luggage compartment lid emergency release handle.

   Courtesy of FORD MOTOR COMPANY

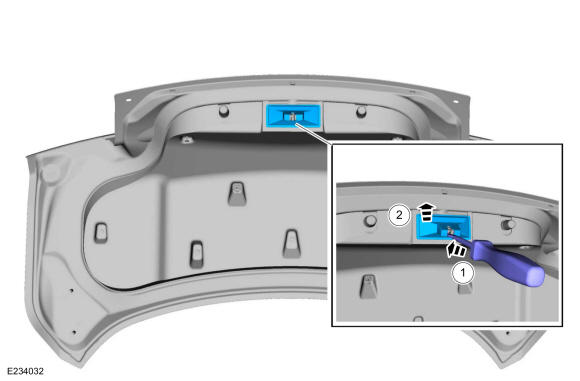

2. Remove the luggage compartment lid latch cover.
   1. Insert a flat blade screwdriver between the luggage compartment lid latch cover and luggage compartment lid latch.
   2. Remove the luggage compartment lid latch cover while gently prying the cover away from the luggage compartment lid latch disengaging the luggage compartment lid latch cover from the tab on luggage compartment lid latch. Use the General Equipment: Flat-Bladed Screwdriver

   Courtesy of FORD MOTOR COMPANY

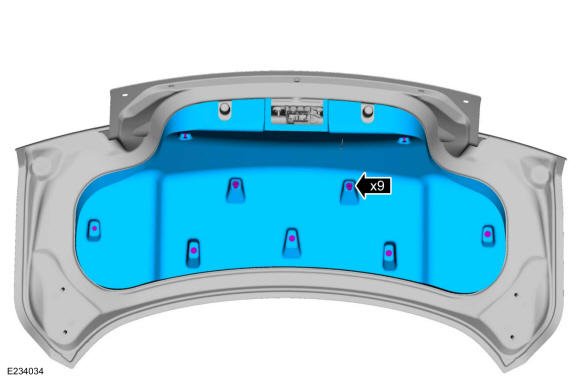

3. Remove the retainers and the luggage compartment lid trim panel.

   Courtesy of FORD MOTOR COMPANY

4. NOTE: This step is only necessary when installing a new component.

   Remove the luggage compartment lid moulding. Refer to: Luggage Compartment Lid Moulding .

5. NOTE: This step is only necessary when installing a new component.

   If equipped, remove the rear spoiler. Refer to: Rear Spoiler .

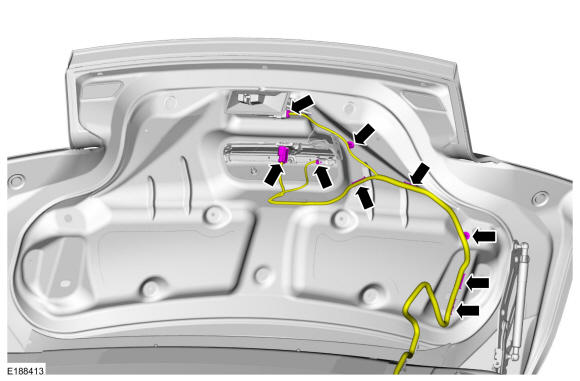

6. Detach the wiring harness retainers and disconnect the luggage compartment lid electrical connectors.

   Courtesy of FORD MOTOR COMPANY

   Convertible

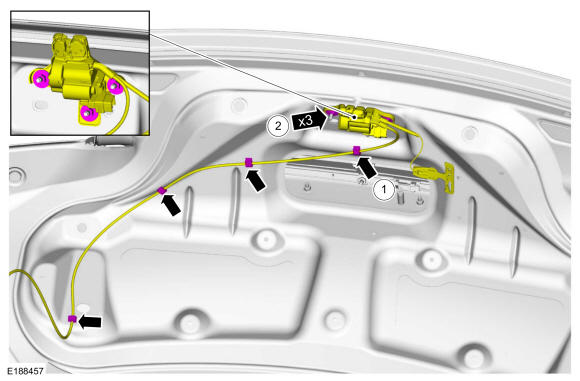

7. 1. Detach the latch lock cable retainers.
   2. Remove the bolts and position aside the latch lock cable.

      Torque

      : 80 lb.in (9 Nm)

   Courtesy of FORD MOTOR COMPANY

   All vehicles

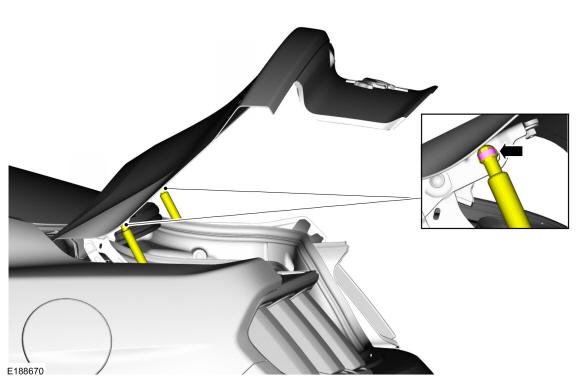

8. On both sides, remove the strut.

   Courtesy of FORD MOTOR COMPANY

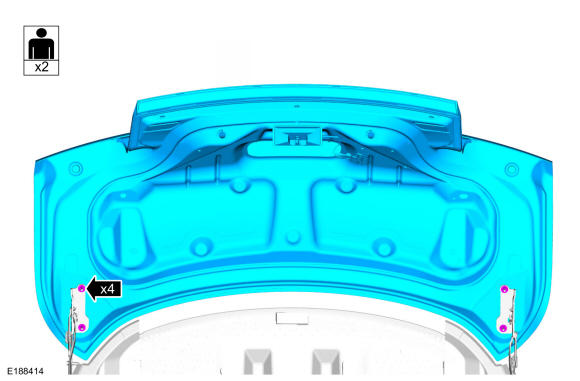

9. NOTE: This step requires the aid of another technician.

   Remove the nuts and the luggage compartment lid.

   Torque

   : 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
