Rear Seat Backrest Latch: Removal

NOTE: LH seat shown, RH seat similar.
  1. Remove the rear seat backrest cover. Refer to: Rear Seat Backrest Cover - Coupe .

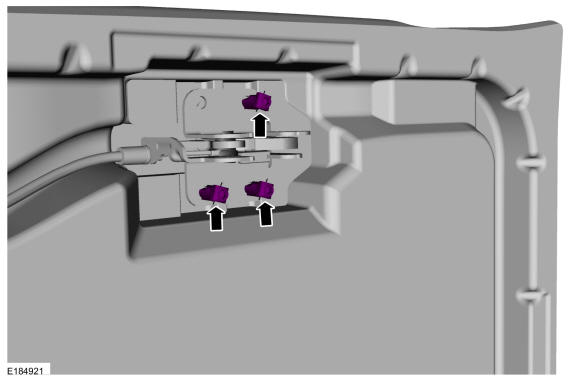

  2. Release the latch fasteners from the rear of the backrest frame.
    GFD289684Courtesy of FORD MOTOR COMPANY
  3. Using an electric drill, remove the rivet. Remove the seat latch assembly. Use the General Equipment: Electric Drill
GFD289685Courtesy of FORD MOTOR COMPANY
