Rear Seat Backrest - Convertible: Removal

  1. Remove the rear seat cushion. Refer to: Rear Seat Cushion .

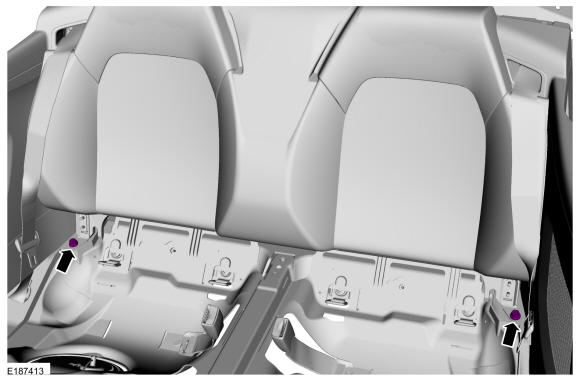

  2. Release the fasteners attaching the seat backrest to the floor.

    Torque: 35 lb.ft (47.5 Nm)

    GFD289674Courtesy of FORD MOTOR COMPANY

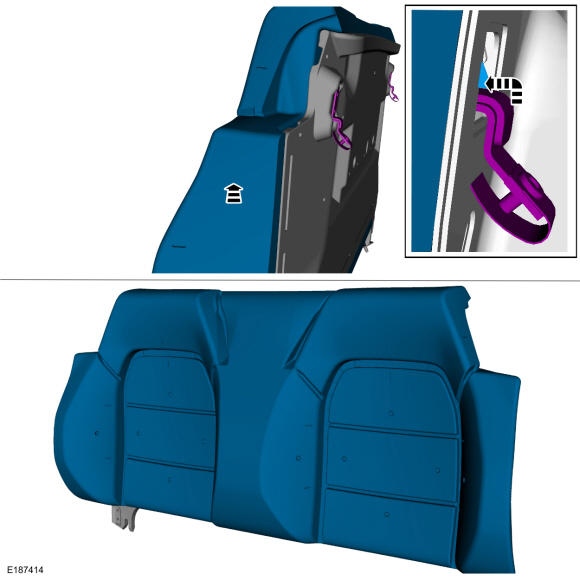

  3. Release the backrest locking clips. Remove the backrest.
GFD289675Courtesy of FORD MOTOR COMPANY
