Front Seat Cushion Cover: Removal

All seats

1. Remove the front seat. Refer to: Front Seat .
2. Release the retaining clip and remove the seat recline handle.

   Courtesy of FORD MOTOR COMPANY

   Manual driver seat

3. Remove the height adjusting handle.
   1. Raise the height adjusting handle.
   2. Release the locking tab.
   3. Slide the height adjusting handle forward.

   Courtesy of FORD MOTOR COMPANY

   Power seats and manual driver seat

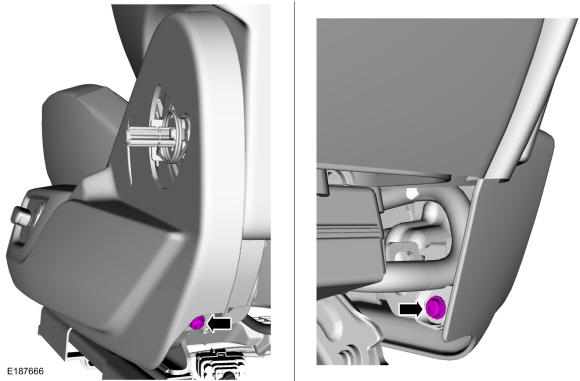

4. Remove the side shield screws.

   Courtesy of FORD MOTOR COMPANY

5. Remove the side shield.
   1. Lift up on the rear of the side shield and pull outward.
   2. Push the side shield forward.
   3. If equipped. Disconnect the electrical connector.

   Courtesy of FORD MOTOR COMPANY

   Passenger manual seat

6. Remove the side shield screws.

   Courtesy of FORD MOTOR COMPANY

7. Remove the side shield.
   1. Pull the rear of the side shield out.
   2. Firmly grasp the side shield, lift up and out, separating the side shield from the recliner bracket.
   3. From underneath, squeeze the retainers together and pull out on the side shield.
   4. Slide the side shield forward.

   Courtesy of FORD MOTOR COMPANY

   All seats

8. NOTE: Seat backrest blower motor with snorkel shown.

   Release the electrical connector retainers and position the wire harnesses aside.

   Courtesy of FORD MOTOR COMPANY

9. NOTE: Seat backrest blower motor with snorkel shown.

   If equipped. Position the backrest cover.

   1. Detach the backrest cover straps.
   2. If equipped. Route the backrest cover straps out through the backrest blower motor snorkel.
   3. Position the backrest cover aside.

   Courtesy of FORD MOTOR COMPANY

10. If equipped. Detach the J-clips and position the cushion cover aside.

    Courtesy of FORD MOTOR COMPANY

11. NOTE: For passenger seats equipped with an OCS service kit, the OCS will be adhered to the bottom of the seat cushion foam.

    Release the J-clips and position the front of the seat cushion cover and foam assembly upwards.

    Courtesy of FORD MOTOR COMPANY

    Driver seat and passenger seat with OEM (Original Equipment Manufacturer)

12. Remove the front seat cushion cover and foam as an assembly.

    Courtesy of FORD MOTOR COMPANY

    Passenger seat with service kit

13. NOTE: When equipped with an OCS service kit, the OCS is adhered to the bottom of the front seat cushion foam. This requires the cushion cover, foam and OCS to be positioned aside as an assembly.

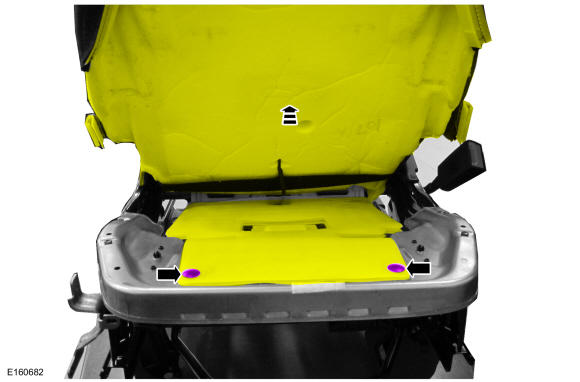

    With the seat cushion cover, foam and OCS assembly positioned upward, remove the pin-type retainers.

    Courtesy of FORD MOTOR COMPANY

14. NOTE: Using excessive force when bending the bracket tab can damage the OCS sensor housing.
    NOTE: Follow the unique instructions or graphic for this step in the installation.

    Disconnect the electrical connector, bend the bracket tab away and slide the OCS sensor off the bracket.

    Courtesy of FORD MOTOR COMPANY

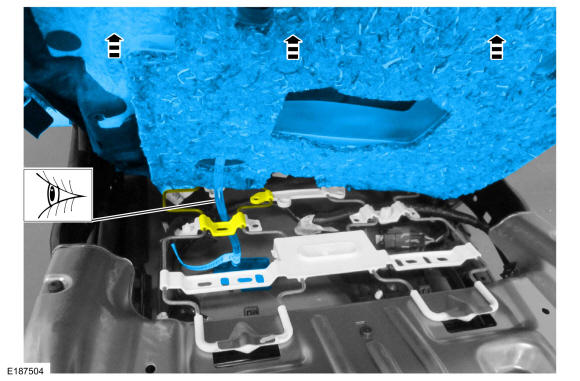

15. NOTE: Note the location of the OCS hose as it passes through the seat springs for proper installation.

    Route out the OCS hose and sensor from between the seat cushion support wires and remove the seat cushion cover, foam and OCS sensor as an assembly.

    Courtesy of FORD MOTOR COMPANY

    All seats

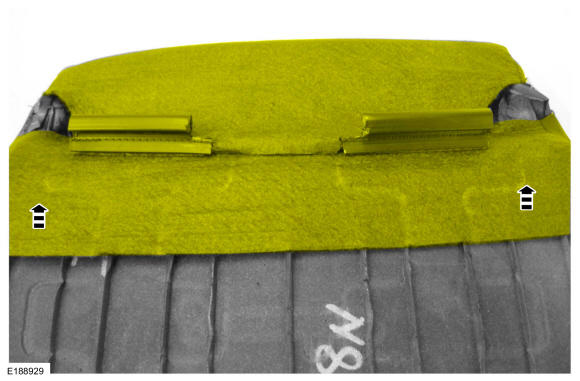

16. NOTE: This step is only necessary when installing a new component.

    Position the rear portion of the seat cushion cover from the foam.

    Courtesy of FORD MOTOR COMPANY

17. NOTE: Use care when separating the seat cushion from the hook-and-arrow or the hook may be torn from the seat cushion foam pad.
    NOTE: Use care when separating the seat cushion trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat cushion foam pad.
    NOTE: This step is only necessary when installing a new component.

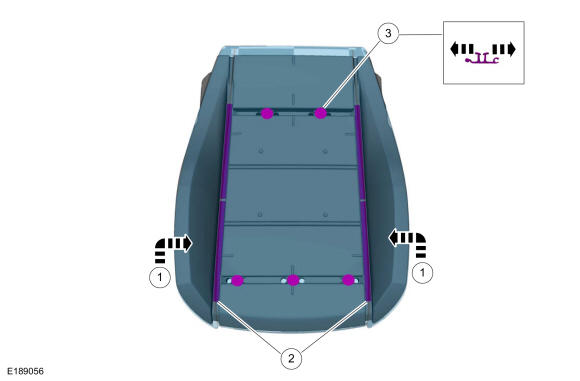

    Remove the seat cushion cover.

    1. Position the seat cushion cover.
    2. Release hook-and-loop strips.
    3. Release the hook-and-arrows.

Courtesy of FORD MOTOR COMPANY
