Auxiliary Power Point: Removal

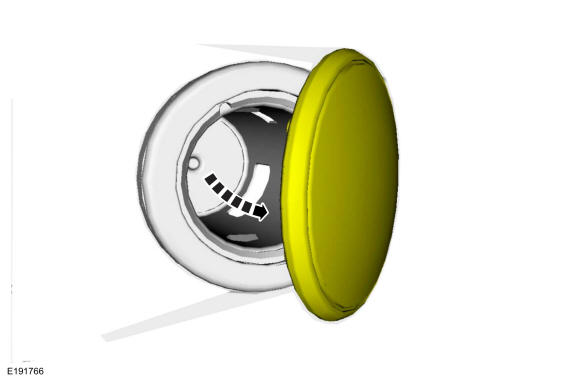

  1. Open the power point cover.
    GFD289777Courtesy of FORD MOTOR COMPANY

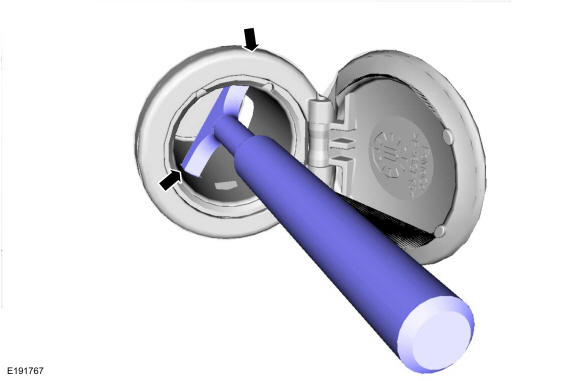

  2. Position the power point extractor so that it engages in the adjacent slots in the power point socket. Use Special Service Tool: 501-194 Remover, Power Point.
    GFD289778Courtesy of FORD MOTOR COMPANY

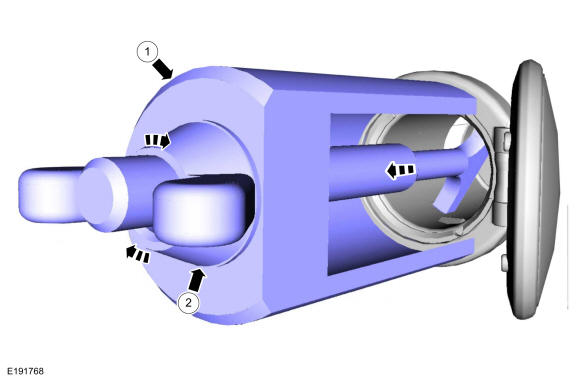

    1. Install the receiver cup.
    2. Install and tighten the wing nut. Use Special Service Tool: 501-194 Remover, Power Point.
    GFD289779Courtesy of FORD MOTOR COMPANY

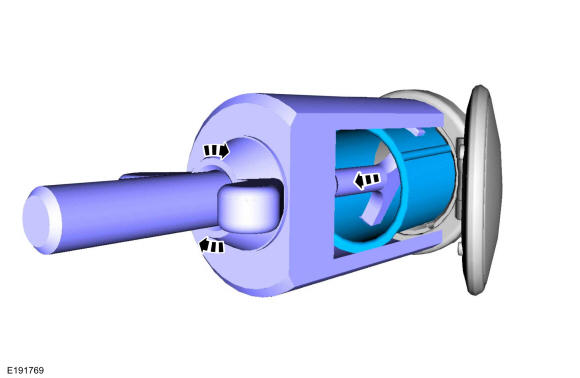

  4. Tighten the wing nut to pull the power point socket out of the retainer. Use Special Service Tool: 501-194 Remover, Power Point.
    GFD289780Courtesy of FORD MOTOR COMPANY
  5. Disconnect the electrical connector.
GFD289781Courtesy of FORD MOTOR COMPANY
