Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. Refer to: Valve Cover .

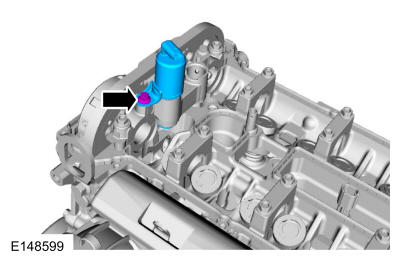

  3. Torque: 89 lb.in (10 Nm)
    GFD198181Courtesy of FORD MOTOR COMPANY
